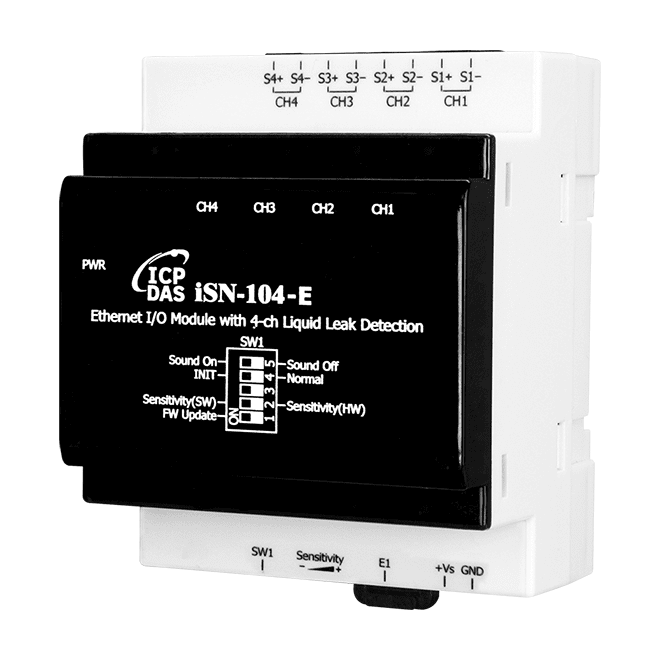

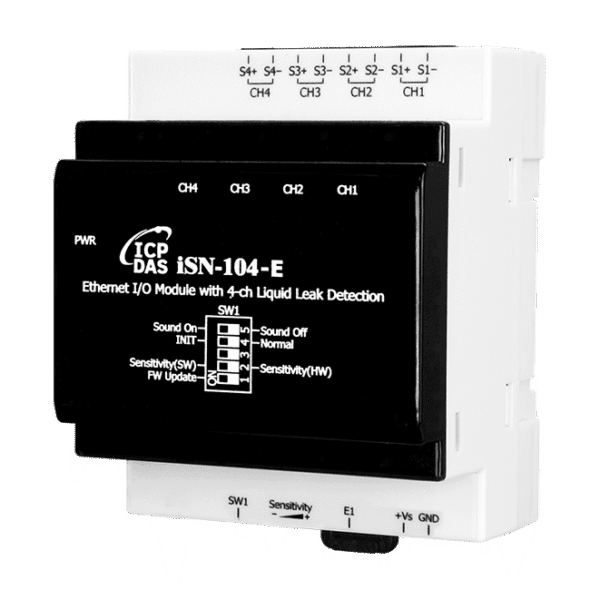

iSN-104-E 4-ch Liquid Leak Detection Module with PoE & Modbus TCP/UDP protocol

iSN-104-E 4-ch Liquid Leak Detection Module with PoE & Modbus TCP/UDP protocol

£249.00

Add to quote

Key Features

  • 4-ch Liquid Leak Detection
  • Water Leakage and cable break detection triggers and audible alarm
  • A mute button to silence the audible alarm
  • Five LED indicators to display the status of the power and the alarm
  • Liquid Leak Detection Cable and Extended Cable can be up to 500 meters
  • Sensitivity adjustable detection
  • Supports Modbus TCP/UDP, MQTT
  • Includes Redundant Power Inputs: PoE and DC Input
CE UKCA FCC RoHS WEEE

Description

The ICP DAS iSN-104-E Liquid Leak Detection Module is a low-cost intelligent liquid leak detection device that can be used to directly control triggers and audible alarm. No additional conversion module is needed and the iSN-104-E can be easily integrated with a variety of monitoring systems to achieve remote alarm and remote device control. The iSN-104-E Liquid Leak Detection module can be used to monitor double-core leader cable lengths of up to 500 meters, and can be used with both the extended cable and its included liquid leak detection cable.

The module can be easily integrated with other collection hosts connected to the network. The iSN-104-E is suitable for real-time leak detection in critical locations, such as computer room base stations, warehouses, libraries, museums and industrial sites, and also for air handling equipment, refrigeration units, liquid containers, or pump tanks, etc., where there is a need to monitor any leakage of the equipment.

When required, communication with the iSN-104-E can be programmed based on the Modbus TCP/UDP, with the added benefit that different addresses can be configured via hardware to allow for Modbus TCP/UDP communication. iSN-104-E with Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.

Applications

The iSN-104-E is a leakage detection module used in water pipe leak monitoring in buildings with two working modes.
1. Work with the water sense cable that installed near the possible leaking pipe or area to detect leakage and cable break with alarm.
2. Work with the water leakage probe that installed in fixed possible leak locations to detect.
The leakage monitoring is applied to the water pipes, fire pipes and sewage pipes of buildings, as well as the detecting of domestic water, drainage and electric equipment, which can effectively achieve water saving and ensure the safety of living. The iSN-104-E can detect leakages, send out signal and alarms, combine with the WISE IoT Edge Controller or TPD/VPD Touch HMI, and to further integrate with the mobile APP or community system.
