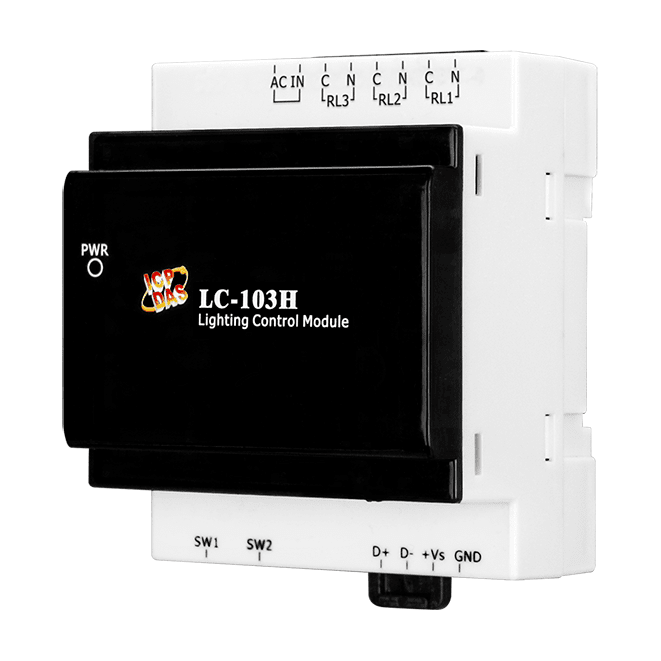

LC-103H 1-ch AC Digital Input & 3-ch Relay Output Lighting Control Module with High Power Relay Output

£79.00

Add to quote

Key Features

  • Provide High Power Relay Output to turn ON/OFF the Lighting
  • Support Lighting Module (Max.):
  • Incandescent Lamp: 40 W/ 220 VAC * 8 Sets
  • LED(Electronic ballast): 40 W/ 220 VAC * 10 Sets
  • Isolated AC Digital Input
  • Made from fire retardant materials (UL94-V0 Level)
  • 5000 VDC Intra-Module Isolation
  • ±2 kV Surge, ±4 kV ESD and EFT Protection
  • Supports Modbus RTU and DCON Protocols
  • Low power consumption
  • DIN-Rail mounting
CE FCC RoHS WEEE

Description

The ICP DAS LC-103H is an easy-to-use lighting control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.

The LC-103H has a single channel for digital input (photo couple isolation) and 3 channels for relay output. All output channels are form A type relays, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 3-channel relay ON and OFF sequence without requiring a remote host controller. 4 kV ESD protection and 5000 Vrms intra-module isolation are also provided.

When required, communication with the ICP DAS LC-103H is programmable based on the DCON & Modbus RTU protocol, and an added benefit is that different addresses can be set for DCON & Modbus RTU communication via hardware configuration.
