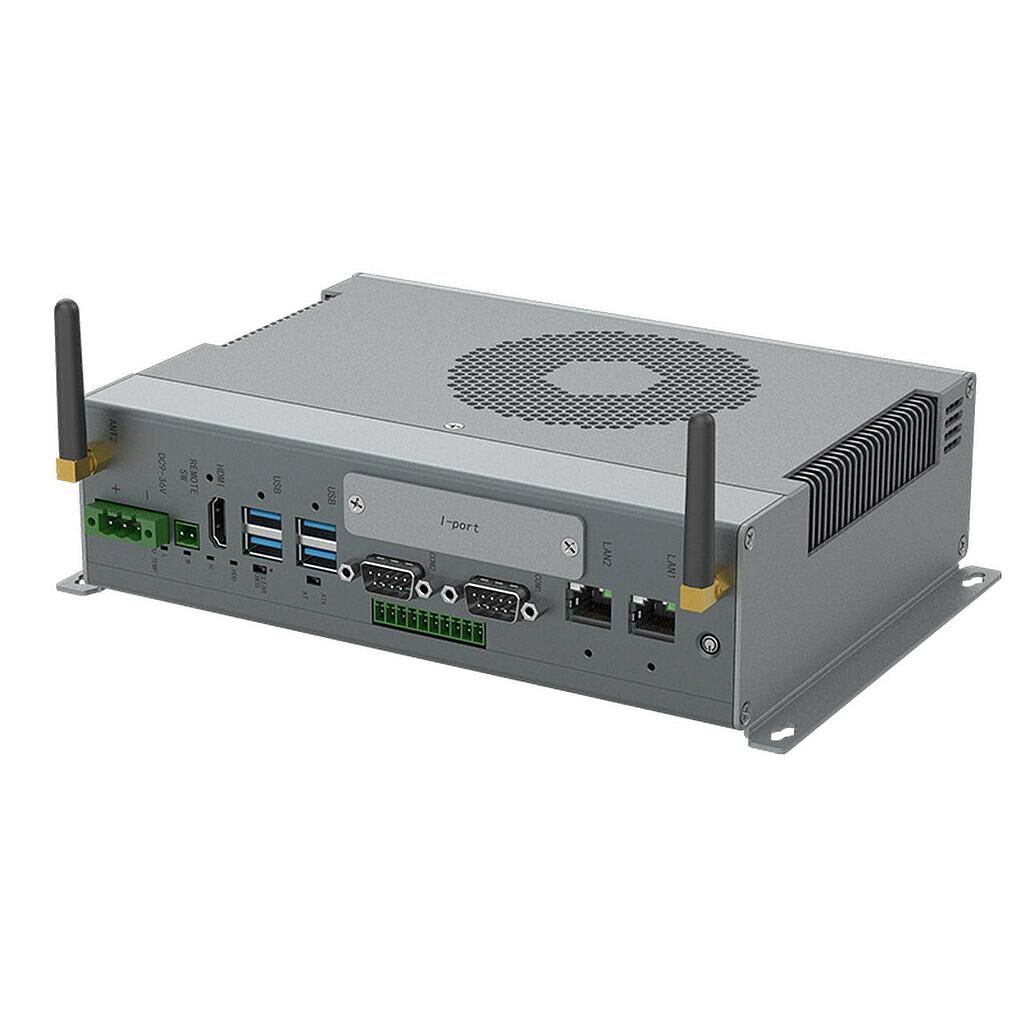

KMDA-7611-S001-i9 Fanless Box PC, Intel Alderlake i9-12900 CPU with 32G DDR5, 2*LAN, 4*USB3.2, 2*USB2.0, 4*COM, 1*VGA & 1*HDMI

Add to quote

Key Features

  • Intel® 12th Gen Alder lake-S LGA1700 CPU
  • Intel® H610 Chipset
  • 2*DDR5 4800MHz SODIMM, up to 64GB
  • 1*DP, 1*HDMI and 1*VGA, 3 independent displays
  • 2*LAN, 4*USB3.2, 2*USB2.0, 16bit Iso. DIO
  • Audio 1*MIC+1*LINE OUT
  • 2*RS232/422/485 and 2*RS232 COM 1*Mini-PCIe full size with SIM card slot, support 4G LTE modem
  • 2*2.5”Easy-plug SATA3.0 bay and 1*mSATA
  • DC IN 9-36V, wide power input, with OVP,OCP and SCP

CE UKCA FCC RoHS WEEE

Description

The KMDA-7611-S001 is a high-performance box computer with H610 chipset, powered by Intel® Alder lake-S CPU, multi IO interfaces and moderate size. It is suitable for unmanned forklifts, machine vision, and industrial control and other industries and fields.

The KMDA-7611-S001 provides a wide range of I/O interfaces, including isolated COM, USB, GbE LAN, GPIO, DIO, as well as Mini PCIe and PCI/PCIe expansion slots for WiFi or other advanced expansions.

Our range of industrial fanless embedded computers are ruggedly designed to meet mission-critical applications with harsh environmental conditions including extreme temperatures, high shock and vibration, and protection from water splash and dust.

Our wide range of industrial fanless embedded computers come with a two year standard warranty period.

KMDA-7611-S001-I01 DS-EN A0.2
