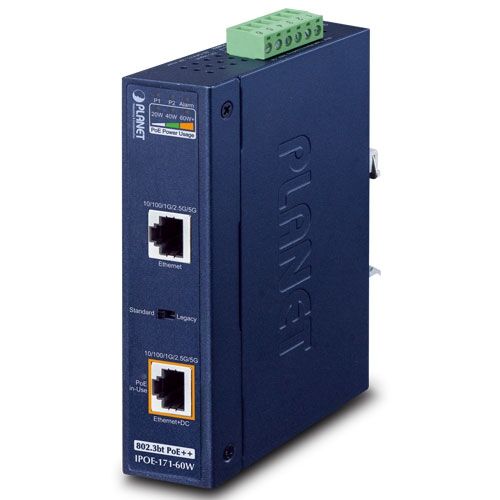

IPOE-171-60W Industrial Single-Port Multi-Gigabit 802.3bt PoE++ Injector (60 Watts, -40~75 degrees C, 48~54VDC)

£139.00

Add to quote

Key Features

  • 2 Multi-Gigabit RJ45 interfaces
    • 1-port Data + Power output
    • 1-port Data input
  • 1 terminal block for master and slave power input. (Power Range: 48 ~ 54V DC redundant power)
  • 1 PoE mode (standard/legacy and force) DIP switch
  • Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
  • Supports PoE power up to 60 watts for PoE port
  • IP30 slim-type metal case
  • LED indicators for Power LED , PoE-in-Use LED and PoE Usage LED
  • Solid wall mount or DIN-rail mount installation
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
CE FCC RoHS WEEE

Description

Advanced Industrial Multi-Gigabit and 802.3bt PoE++ Network Solution

PLANET IPOE-171-60W is a Single-Port, Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is also equipped with two 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.

It is designed specifically to meet the demand for growing higher power required network equipment such as:

  • Lighting
  • All-in-one touch PC
  • Remote digital signage display
  • Other network devices that need higher power to work normally

The IPOE-171-60W delivers the Ethernet digital data with DC power over the twisted-pair cables as a 60-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the IPOE-173S, will separate the digital data and the power into three optional outputs (12V/24V DC) with distance up to 100 meters.

60 watts of Power over 4-pair UTP

Instead of delivering power over 2-pair twisted UTP – be it  end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the IPOE-171-60W provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.



C-IPOE-171-60W_95Wv5_L
