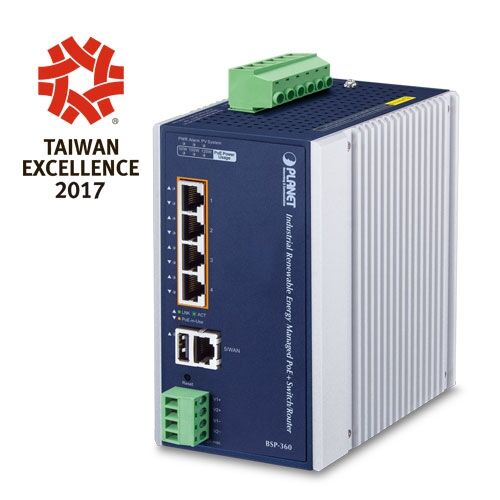

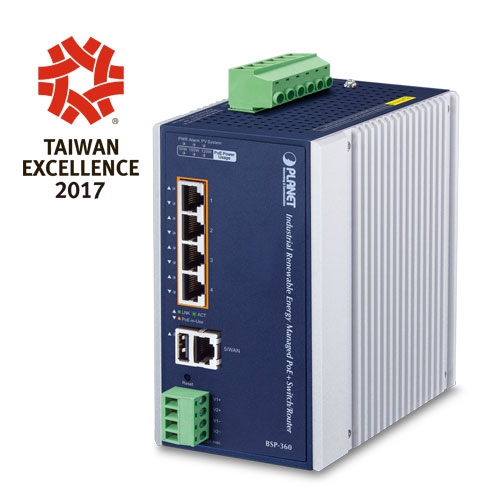

BSP-360 Industrial Renewable Power 5-Port Gigabit Managed Switch/Router with 4-Port 802.3at PoE+


Key Features

  • 5-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE injector function (Port 1 to Port 4)
  • RJ45 type interface for basic management and setup
  • USB type A female for setting file backup and restoration
  • Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Battery type option: Lithium battery or lead-acid battery
  • Easy diagnostic of the system operating status via LED indicator
  • Current battery usage status
  • Low voltage cut-off protection: Send alert and cut off power when  the battery is low
  • IP30 aluminum case
  • DIN-rail and wall-mounted designs
  • Supports -10 to 60 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection


Industry-leading Integration of PoE Technology and Renewable Power System

PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.

PLANET NMS-360 Network Management Controller can centrally manage up to 512 BSP-360 units and 2,048 PLANET IP cameras via MQTT and ONVIF Protocols. (Please regularly check PLANET website for the latest compatibility list of managed devices.)


MPPT (Maximum Power Point Tracking) Charge Controller

An MPPT (Maximum Power Point Tracker) is an electronic DC to DC converter that optimizes the match between the PV solar panels and the battery bank or utility grid. They convert a higher voltage DC output from solar panels (and a few wind generators) to the lower voltage needed to charge the battery effectively. It can support PV module input of up to 400W of power.


Zero-Carbon and Stable Power Supply

The 24V lithium or lead-acid battery gets recharged by way of the BSP-360 where solar power is sourced. Thus, the BSP-360 will keep powering PD devices without the need of any cabling. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.


Smart Battery Management

The BSP-360 features the following special power management functions:

  • Current battery usage status by percentage
  • Low voltage cut-off protection
  • Fully-charged hold time protection


User-friendly and Secure Management

The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption.


For efficient management, the BSP-360 is equipped with web and SNMP management interfaces. With the built-in web-based management interface, the BSP-360 offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software.


Low Voltage Cut-Off Protection

If the remaining energy is too low to power the network, the system will automatically power off the device to make sure the system works normally, and an alert is then sent to the administrator at the same time.


Smart PoE PD Management including PLANET ONVIF IP Carmera

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the BSP-360 features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE Usage Monitoring


ONVIF management functions:

  • Supports PLANET ONVIF IP camera discovery
  • A maximum of four PLANET ONVIF IP cameras can be powered by one BSP-360 switch.
  • Supports IP camera snapshot function in the LAN.


Intelligent Powered Device Alive Check

The BSP-360 can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the BSP-360 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


Scheduled Power Recycling

The BSP-360 allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the BSP-360 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.


PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage

Via the power usage chart in the web management interface, the BSP-360 enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the BSP-360 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the BSP-360 has three LED indicators of different power usages.
