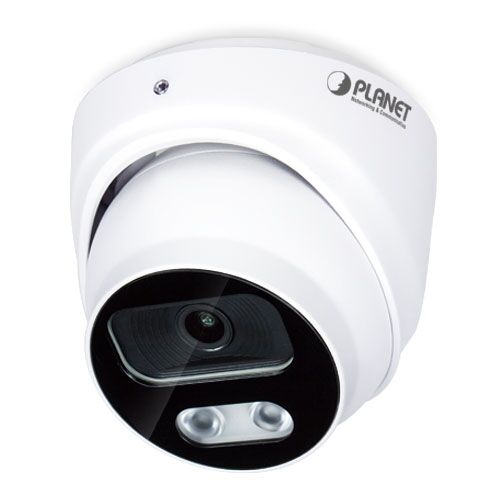

ICA-4480 H.265+ 4MP Smart IR Dome IP Camera


Key Features

  • 1/3″ Progressive Scan CMOS Sensor
  • 3.6mm fixed with 4MP lens
  • 0.03 lux minimum illumination at F1.6
  • Built-in smart IR illuminators, effective up to 25 meters
  • Switchable IR-cut filter for Day & Night function
  • Simultaneous H.264(+)/H.265(+) dual-stream video encoding
  • Simultaneous multi-stream support
  • H.264(+)/H.265(+) baseline profile, main profile or high profile options
  • Max. resolution of 2688 x 1512@25fps
  • Supports Digital WDR (DWDR) (60dB)
  • 3DNR to improve picture quality at low lux
  • IP67-rated metal housing with cable management bracket for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature


PLANET ICA-4480 PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 4 mega-pixel resolutions. Users can benefit from reduced 83% bandwidth and data storage through more efficient video compression.

Incorporating the 1/3″ Progressive Scan CMOS Sensor and 25-meter Smart IR illuminators, which are specially designed for surveillance applications, the ICA-4480 provides sharp images under all lighting conditions. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-4480, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

Exceptional Image Quality by DWDR technology

For specific surveillance applications, wide dynamic technology has become a standard feature of high-definition surveillance cameras. Together with powerful image processing attributes like Digital Wide Dynamic Range (DWDR) and 3-dimensional Noise Reduction (3DNR) technology, the ICA-4480 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.



High Efficiency Video Compression

The ICA-4480 employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 83% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.
