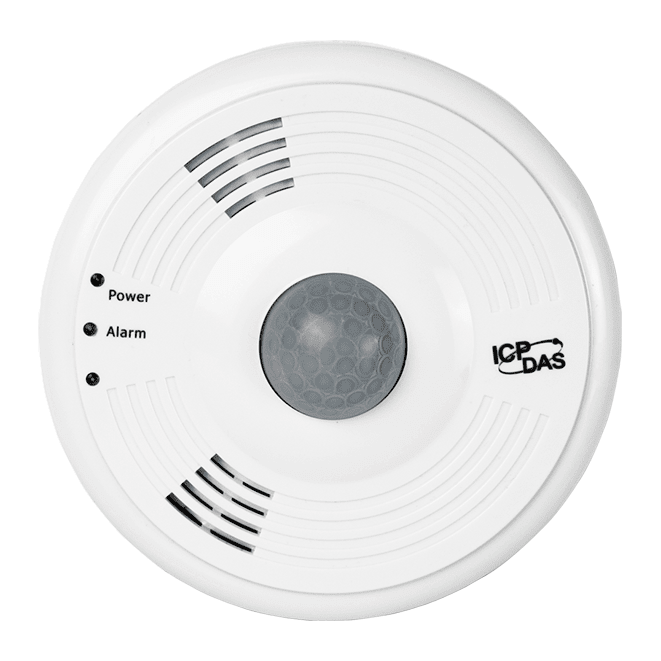

PIR-130-AC PIR Motion Sensor (4m) and Temperature Sensor Module (AC powered)

£122.80

Add to quote

Key Features

  • 360° Motion Detection Up to 8 m Diameter Range
  • Time-Delay / Lux. / Sensitivity Adjustable
  • Photo Sensor Inside for Smart Switch-on Control
  • LED Indicator for PIR/Temperater Sensor
  • The Temperature Sensor for Measuring Room Temperature or Fire Alarm
  • Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
  • Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
  • RS-485 Communication Interface
  • DCON and Modbus RTU Protocols
  • Ceiling Surface Mount Design
CE UKCA FCC RoHS WEEE

Description

The ICP DAS PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected.

The ICP DAS PIR-130 module includes a 1-channel passive infrared (PIR) sensor that is able to detect infrared waves generated by human within a range of approximately 8 meters in diameter with a 360° coverage area. The PIR-130 is used for indoor motion detection, and can be configured to automatically switch on a light if motion is detected. The PIR-130 module also includes a 1-channel temperature sensor that can be used for measuring room temperature or can be configured to activate a fire alarm.

PIR-130-AC-PIR-130-DC_en
