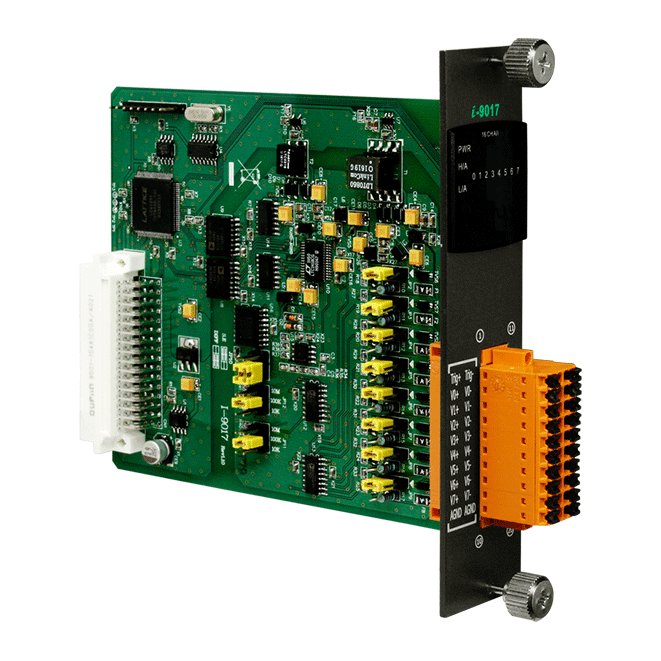

I-9017 16/8-ch Voltage/Current Input Module
£237.00
Key Features
- 16 Single-ended/8 Differential Input Channels
- Input Voltage Range : ±1.25 V, ±2.5 V, ±5 V, ±10 V
- Input Current Range : 0 mA ~±20 mA
- Input Impedance 20 K, 200 K, 20 M
- 14-bit 100 KHz AD Converter
- 2500 Vrms intra-module isolation
- 4 kV ESD Protection
- Wide Operating Temperature Range: -25 to +75 °C
Description
The ICP DAS I-9017 is a high performance analog input module with 14 bits of resolution and a sampling rate of up to about 90K S/s. The ICP DAS I-9017 provides up to 16 single-ended or 8 differential input channels, which is selectable via a jumper setting. The I-9017 has qualification for 4 kV ESD protection and 2500 Vrms intra-module isolation.
