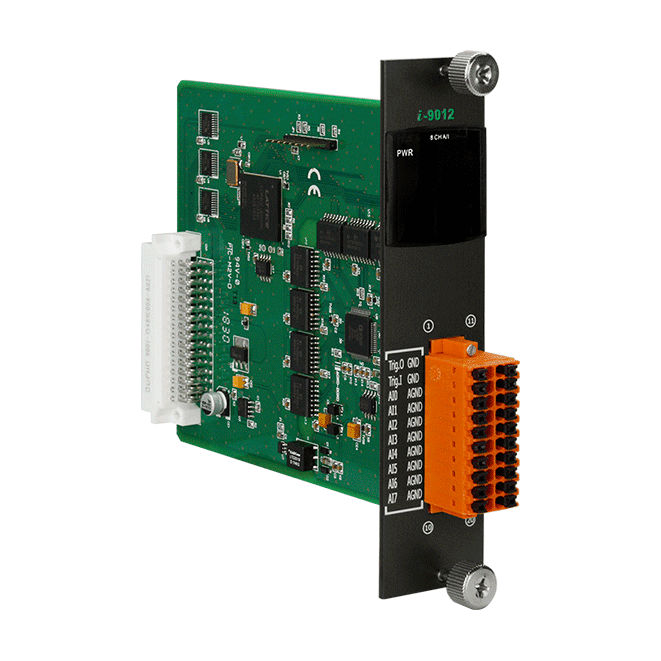

I-9012 8-ch Simultaneously Sampled AI Module


Key Features

  • 16-bit AD Converter
  • Simultaneously Sampled
  • 200 kHz sample rate at single channel
  • 8 k byte FIFO
  • 4 kV ESD Protection
  • 2500 Vrms Intra-module Isolation
  • Wide Operating Temperature Range: -25 to +75 °C


The ICP DAS I-9012 is a high performance analog input module with 16 bits of resolution and a sampling rate up to 200 kS/s per channel. The I-9012 provide 8 channels and input range could be programmable to ± 5 V, ± 10 V trigger output and trigger input pin cloud make multitude of I-9012 modules simultaneously sampled at the same time. This module also provides 4 kV ESD protection and 2500 Vrms intra-module isolation.
