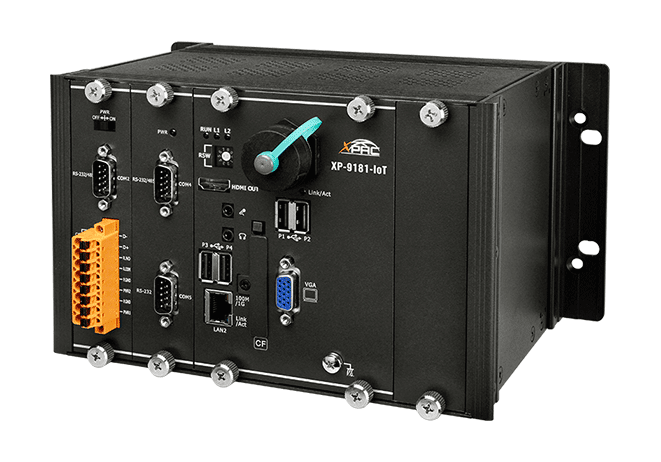

XP-9181-IoT 1-slot Metal Standard PAC with E3845 CPU & Windows 10 IoT


Key Features

  • Windows 10 IoT Enterprise (64-bit)
  • 1 I/O expansion slot
  • Intel® Atom™ E3845 1.91 GHz
  • 64 GB SSD
  • VGA and HDMI Port Output
  • 2 x 10/100/1000M Ethernet Ports
  • Audio with Microphone-In & Earphone-Out
  • Redundant Power Input


The ICP DAS XP-9181-IoT is a Windows 10 IoT Enterprise based Programmable Automation Controllers (PACs) that combine computing, I/O, and operator interface into a single unit to provide a perfect solution for integrating HMI, data acquisition and control in an individual Programmable Automation Controller.

The XP-9181-IoT is equipped with an Intel E3845 CPU, one I/O expansion slot and a variety of interfaces including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interfaces. Local I/O slots are available for use with our I-9K and I-97K series I/O modules, these remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.

xp-9000-iot_data sheet_en
