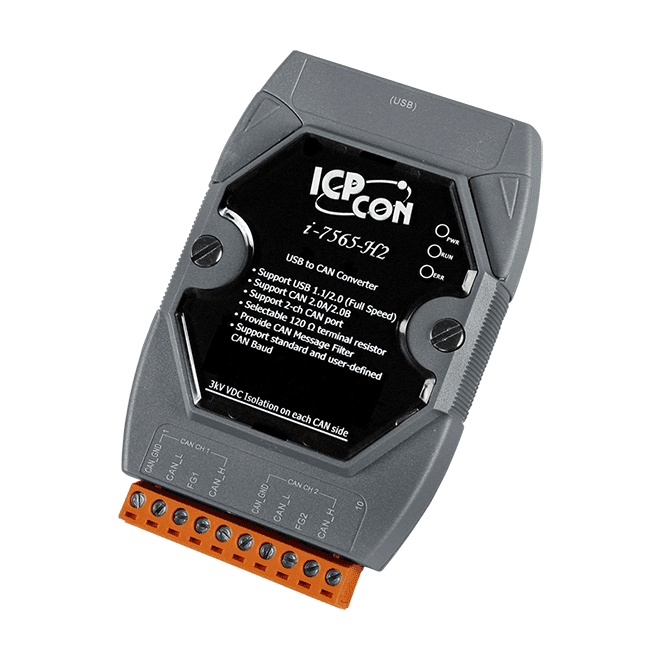

I-7565-H2-G High Performance Intelligent USB to 2-port CAN Bus Converter


Key Features

• Fully compliant with USB 1.1/2.0(Full Speed)
• Fully compatible with the ISO 11898-2 standard
• Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
• Support both CAN 2.0A and CAN 2.0B
• Windows 98/ME/2000/XP/Vista/Win 7/Win 10 and Linux drivers support
• Power, data flow and error indicator for CAN and USB
• Time-stamp of CAN message with ±1ms precision


CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems.
The ICP DAS I-7565-H2 is a high performance intelligent USB to CAN converter and provides two CAN channels. It provides faster CAN bus communication performance than I-7565. The ICP DAS I-7565-H2 supports CAN2.0A/2.0B protocol and different baud rates from 5 Kbps to 1 Mbps.
The important feature of I-7565-H2 is to support the user-defined baud rate function no matter what the baud rate is. When connecting the ICP DAS I-7565-H2 to a PC, the PC will load the relevant device driver automatically (i.e. hot plug & play). Hence, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565-H2.
