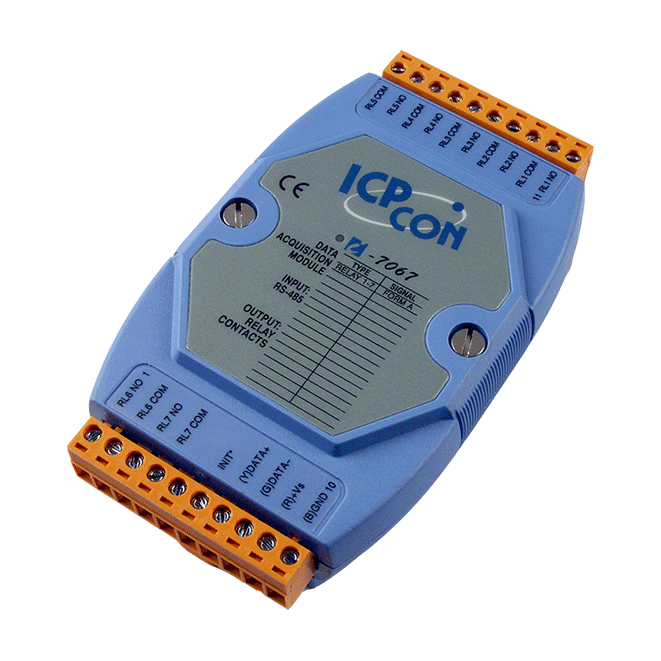

I-7067 7-ch Signal Relay Module

£90.00

Key Features

  • 7 Signal Relay Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Description

The ICP DAS I-7067 series provides 7 signal relay output channels. There are options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities in industrial environment. The “D” versions of the 7061 series provide 12 LED indicators and the “D” versions of the 7067 series provide 7 LED indicators that can be used to monitor the status of the relay output channels.

The “M” versions of each series support both the Modbus RTU and DCON protocols, which can be configured via software. The 7061 series are the ideal solution for high power applications and the 7067 series are the ideal solution for small signal switching.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

I-7061(D)_M-7061(D)_I-7067(D)_M-7067(D)_en
