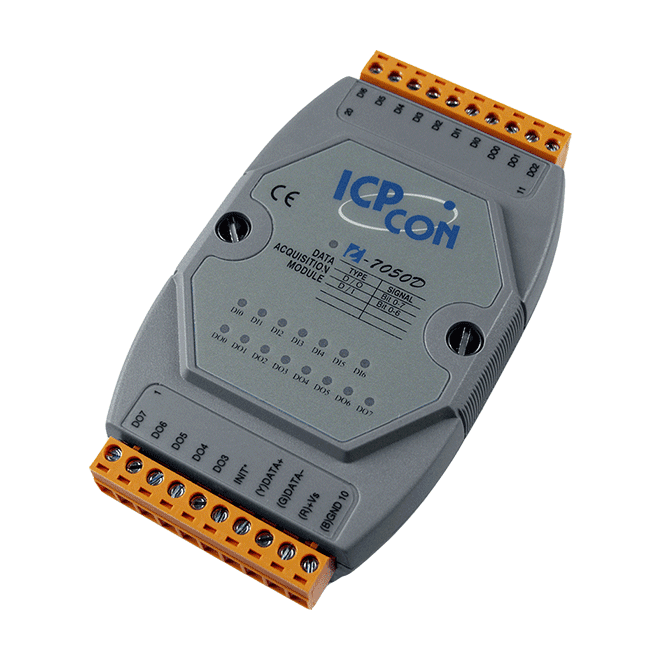

I-7050D 7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module with LED Display


Key Features

  • 7 Digital Inputs and 8 Digital Outputs
  • Sink-type Open Collector Output
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog


The ICP DAS I-7050/I-7050D module offers 7 channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050(D) supports sink- or source-type input, also sink-type open collector output. All input channels are able to be used as 16-bit counters. There are also options to enable both power-on and safe values.

The I-7050D has 15 LED indicators that can be used to monitor channel status. The M-7050 has the same hardware specifications as the I-7050, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

I-7050(D)_I-7050A(D)_M-7050(D)_en (1)
