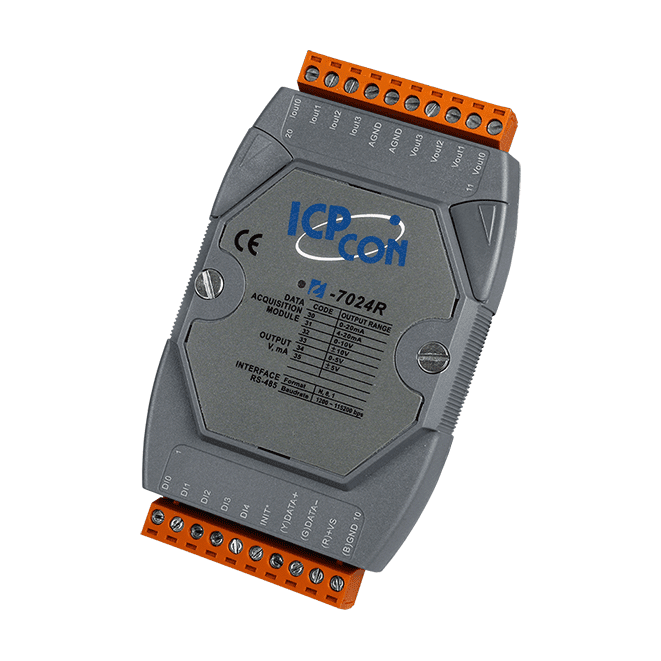

I-7024R 4-ch 14-bit AO Module with 5-ch DI


Key Features

  • 4 Analog Outputs and 5 Digital Inputs
  • Software Selectable Current or Voltage Output
  • Power-on Value Setting
  • Safe Value Setting
  • Programmable Output Slope
  • Built-in Dual Watchdog


The ICP DAS I-7024 is a 14-bit 4-channel analog output module that provides current and voltage outputs. There are options for power-on values and safe values. It features 3000 VDC intra-module isolation.

The I-7024R is the same as the I-7024 and provides additional 5-channel digital inputs and 4 KV ESD protection on each terminal. The M-7024/M-7024R support Modbus RTU and DCON protocols and can be configured via software. Their hardware specifications are the same as those of the I-7024/I-7024R.


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
