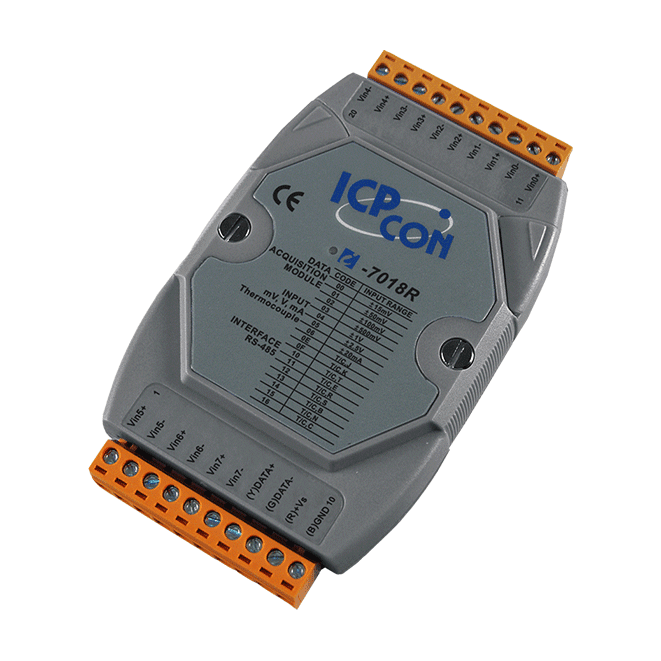

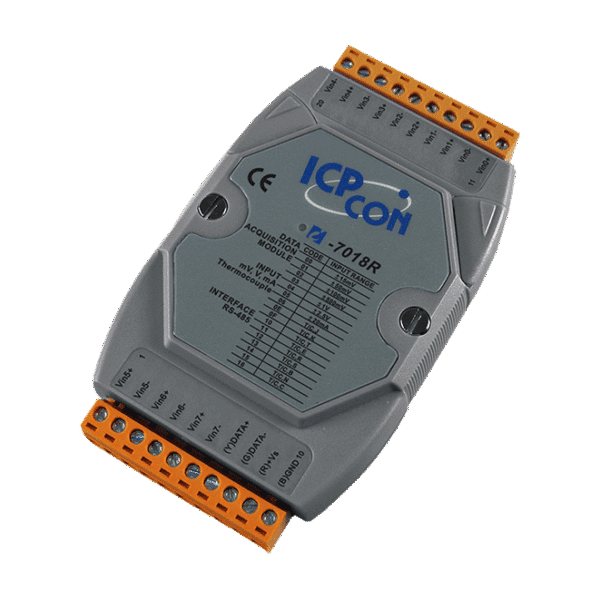

I-7018R 8-ch Thermocouple Input Module with High Voltage Protection


Key Features

  • 8 Differential Analog Inputs
  • Current, Voltage, and Thermocouple Inputs
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Built-in Dual Watchdog


The ICP DAS I-7018 is an 8-channel Analog Input module that provides current and voltage input, as well as thermocouple input. The I-7018R is an upgraded version of the I-7018 that includes an extremely high-quality protection mechanism where the overvoltage protection can be as high as 240 Vrms.

The I-7018R is more suitable for critically harsh environments, and the newly-added open thermocouple detection feature makes the I-7018R more attractive than ever.

The I-7018R also features 4 kV ESD protection and 3000 VDC intra-module isolation. The specifications for the M-7018 and M-7018R are the same as the I-7018 and I-7018R, but provide additional support for the Modbus RTU protocol as well as the DCON protocol.


  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment
