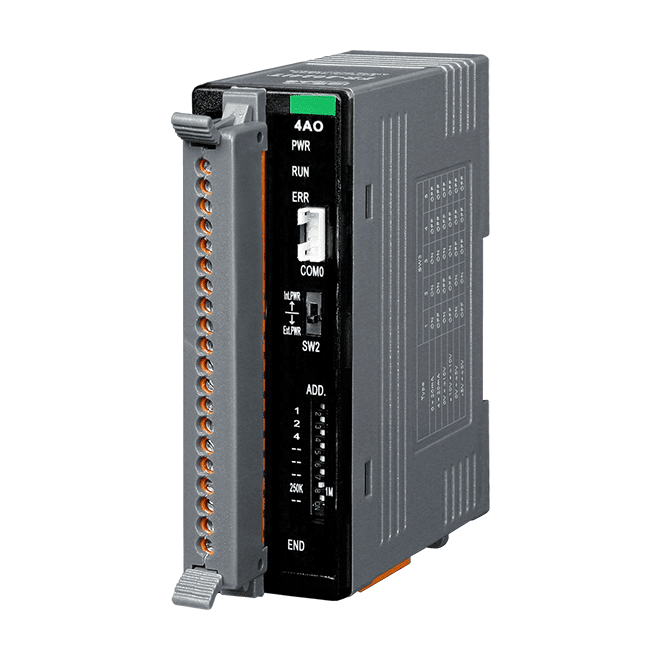

FR-2024iT FRnet I/O Module with 4-channel Isolated AO & Isolated Communication Line


Key Features

  • Built-in wire-saving FRnet control
  • High-speed transmission reliability
  • Simple synchronization mechanism
  • No software overhead on protocol processing
  • Supporting broadcasting (1:n data transmission)
  • Duplicating output easily
  • Fixed I/O scan-time and I/O synchronization


The ICP DAS FR-2024iT is a 12-bit, 4-ch analog outputs module that provides programmable output range (0 ~ + 10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20mA, +4mA ~ +20mA) . There are options for power on value and Safe Value for your consideration.

The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2017iT/2024iT; refer to literatures related to I-7188EF, I-8172W, and FRB-100/200/200U.
