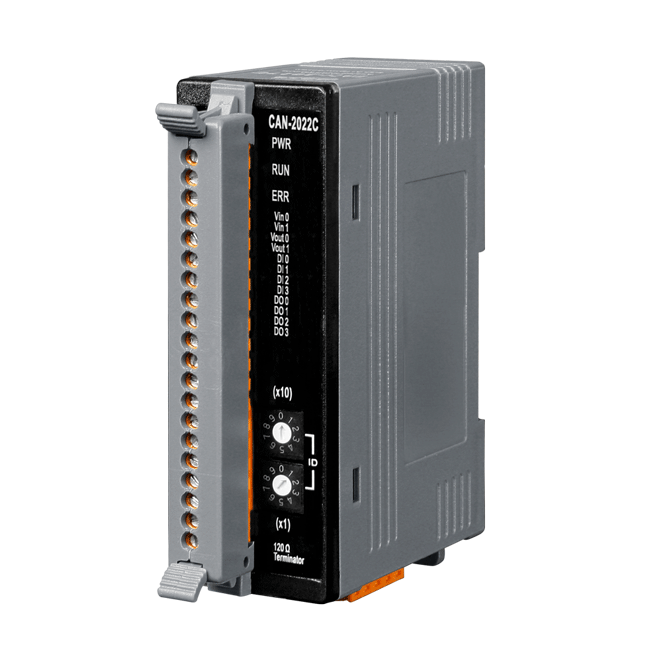

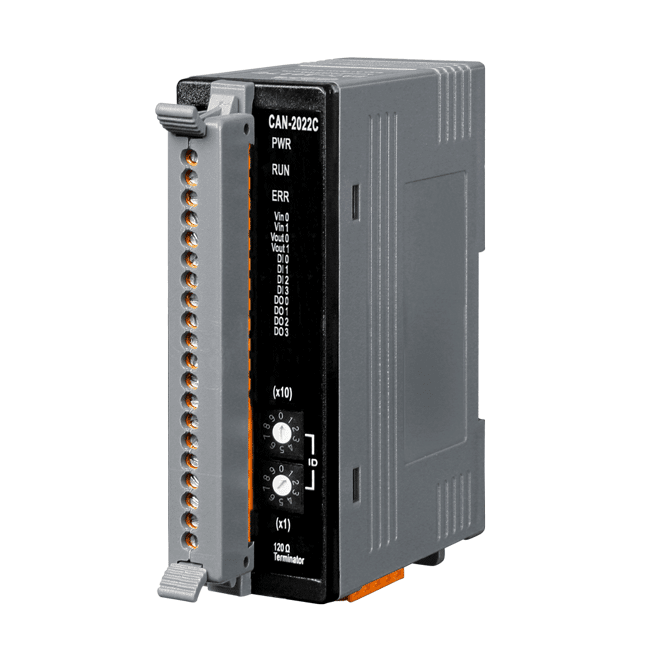

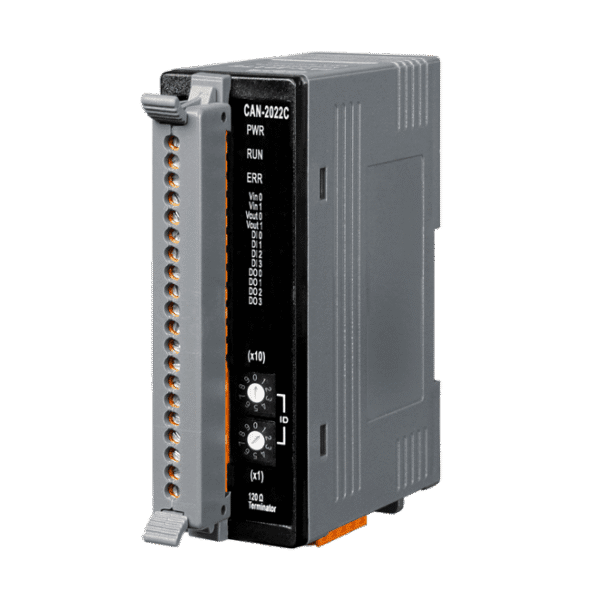

CAN-2022C CANopen Slave Module with 2-channel Isolated AI, 2-channel Isolated AO, 4-channel Isolated DI & 4-channel Isolated DO

£299.00

Key Features

  • NMT Slave
  • Provide Pair-Connect function
  • Passed the validation of CiA CANopen Conformance Test tool
  • ESD Protection 4KV Contact for each channel
  • Support Power supply 10 ~30 VDC
  • Support CiA-301 v4.02, CiA-401 v2.1
  • Provide default EDS file

CE UKCA  RoHS WEEE

Description

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The ICP DAS CAN-2022C module follows the CiA-301 version 4.02 and CiA-401 version 2.1. You can access the analog/digital I/O status and set the configuration by using standard CANopen protocol. The CAN-2022C has passed the validation of the CiA CANopen conformance test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file.

The CAN-2022C has 2 analog input channels, 2 analog output channels, 4 digital input channels and 4 digital output channel. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.
