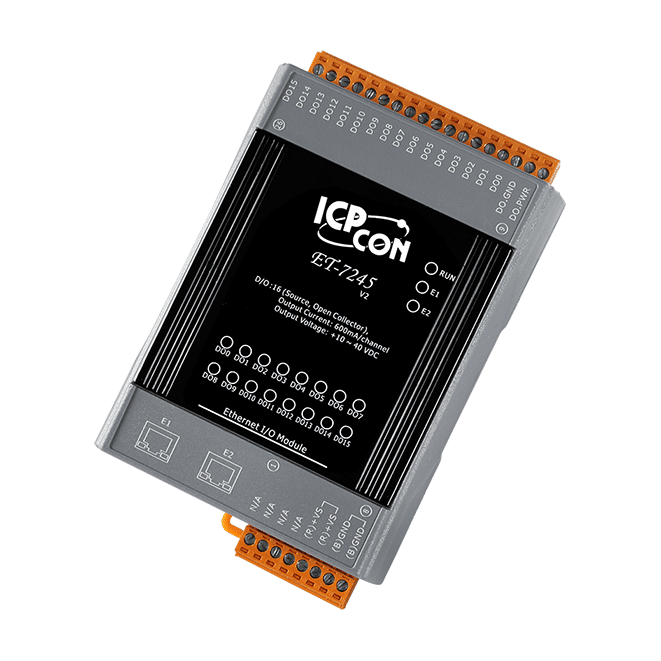

ET-7245 Ethernet I/O Module with 2-port Ethernet Switch and 16-ch DO
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP & Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- Built-in I/O
- Source-type DO: 16 Channels
The ICP DAS ET-7245 provides 16 source-type digital output channels. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation.
The power-on value and safe value of digital output channel are programmable. In some industrial applications, the user can connect the output channel of ET-7245 to the RM series relay module to switch inductive loads.
