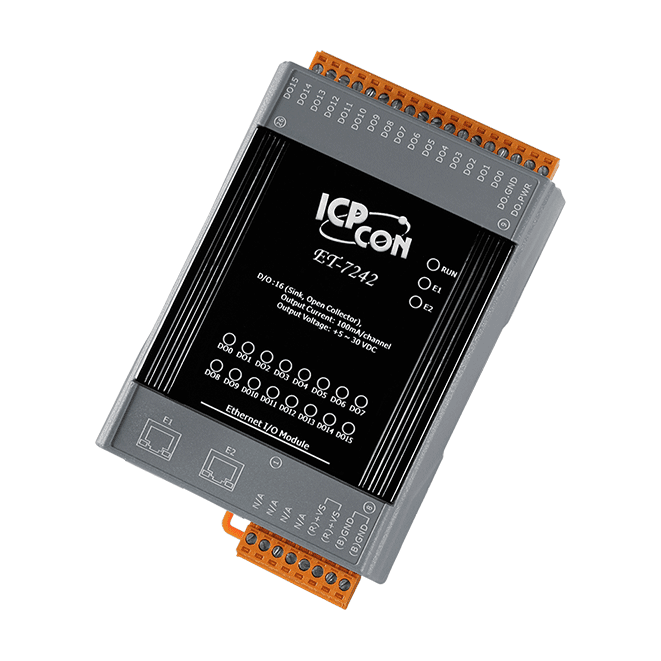

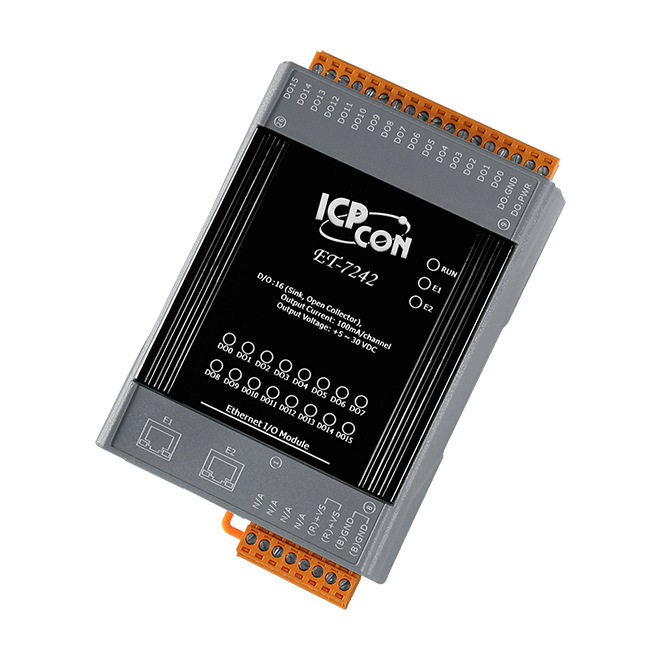

ET-7242 Ethernet I/O Module with 2-port Ethernet Switch and 16-ch DO

Name: ET-7242 Ethernet I/O Module with 2-port Ethernet Switch and 16-ch DO
Brand: simple
Availability: InStock

£242.00

Add to quote

Key Features

Built-in Web Server
Web HMI
Support for both Modbus TCP & Modbus UDP Protocols
Communication Security
2-port Ethernet Switch for Daisy-Chain Topology
Dual Watchdog
Wide Operating Temperature Range: -25 ~ +75°C
Built-in I/O
- DO: 16 Channels

UKCA RoHS WEEE

Description
Datasheets

Description

The ICP DAS ET-7242 provides 16 sink-type digital output channels. It features optical isolation for 3750 VDC of transient overvoltage protection and doesn’t have channel-to-channel isolation.

The power-on value and safe value of digital output channel are programmable. In some industrial applications, the user can connect the output channel of ET-7242 to the RM series relay module to switch inductive loads.

ET-7x42_PET-7x42_en
