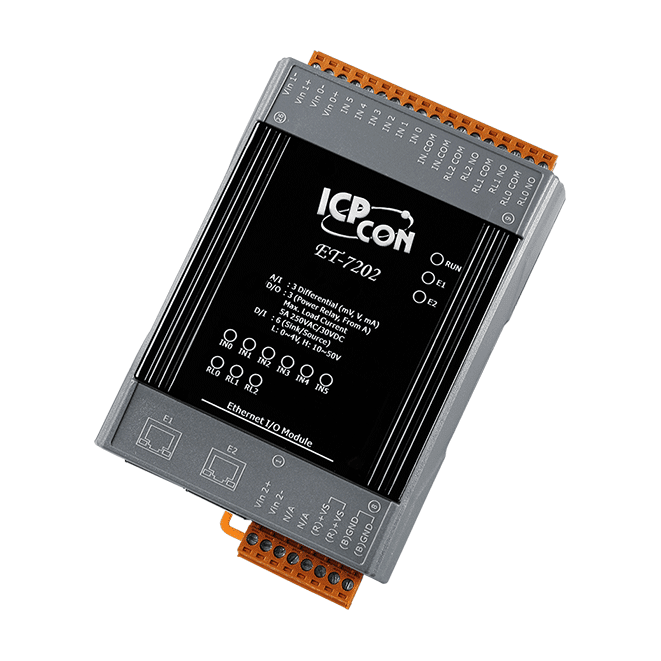

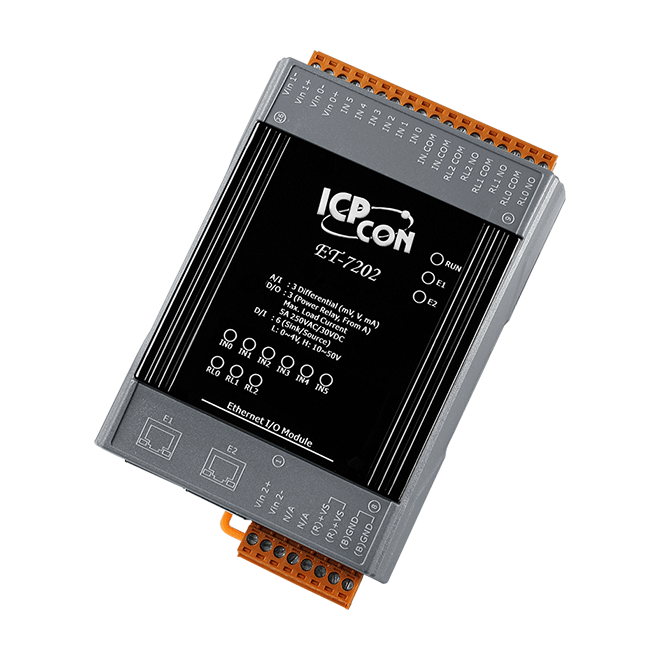

ET-7202 Ethernet I/O Module with 2-port Ethernet Switch, 3-ch AI, 6-ch DI & 3-ch Relay

£335.94

Add to quote

Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP & Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • Built-in I/O
    • AI: 3 Channels
    • DI/Counter: 6 Channels
    • Relay Output: 3 Channels

CE UKCA FCC RoHS WEEE

Description

The ICP DAS ET-7202 is a multi-function module with 3-channel analog inputs, 6-channel digital inputs and 3-channel relay outputs. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection.

Each analog input can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper. The ET-7202 is fully RoHS compliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

ET-7x02_PET-7x02_en
