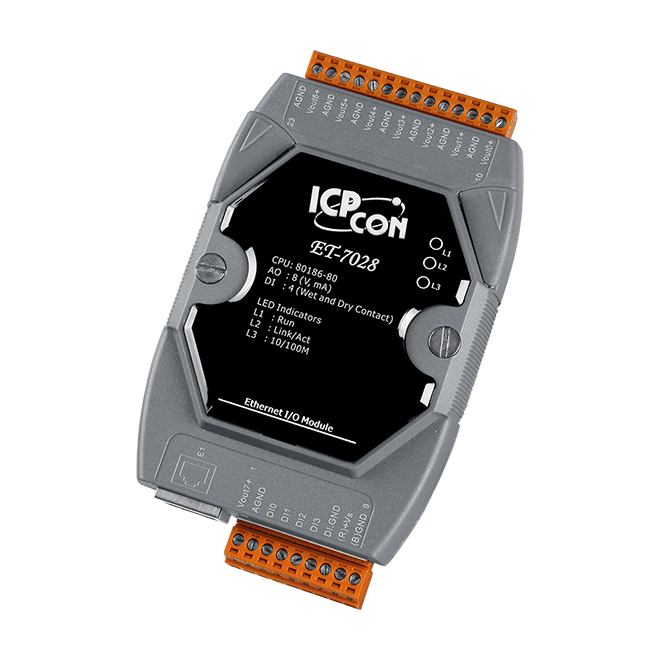

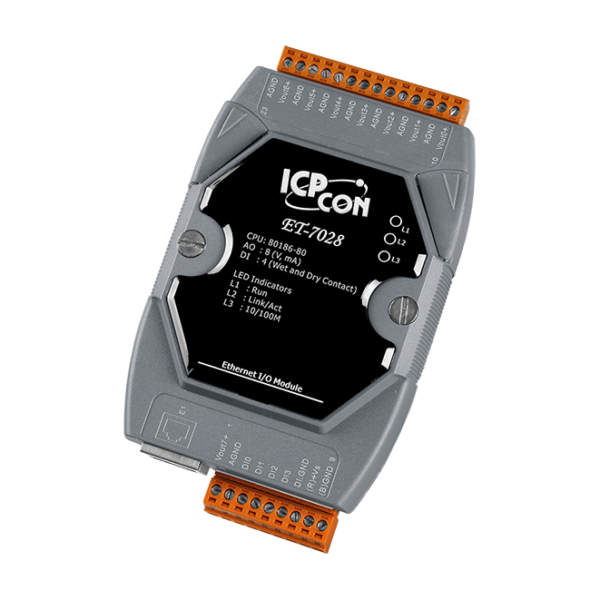

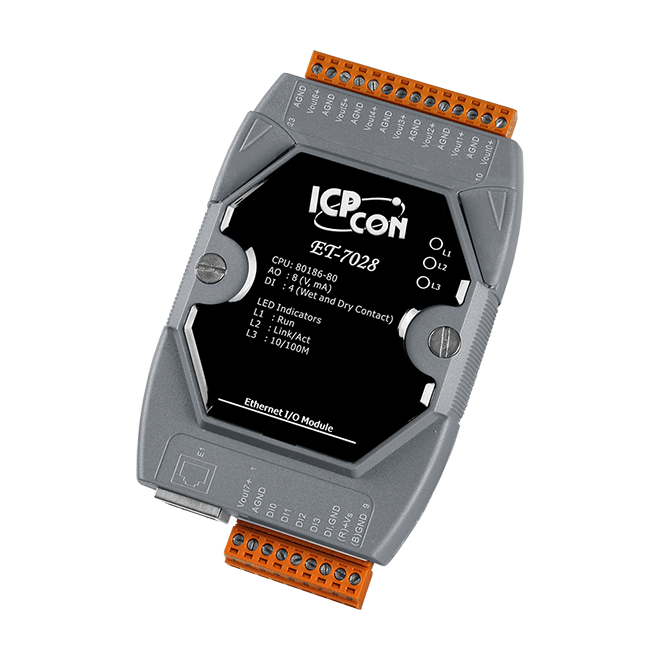

ET-7028 8-ch analog output module


Key Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C
  • I/O Pair Connection
  • Built-in I/O
    • AO: 8 Channels


The ICP DAS ET-7028 is a multi-function module with 8 channels analog output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper.

The ICP DAS ET-7028 is fully RoHS compliant and provides 4 kV ESD protection and 2500 VDC intra-module isolation.
