ET-7018Z/S2 10-ch Thermocouple Inputs & 6-ch DO Ethernet I/O Module with Daughter board & 1.8 m cable
£305.00
Key Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
- I/O Pair Connection
- Built-in I/O
- Thermocouple Input: 10 Channel
- DO: 6 Channel
Description

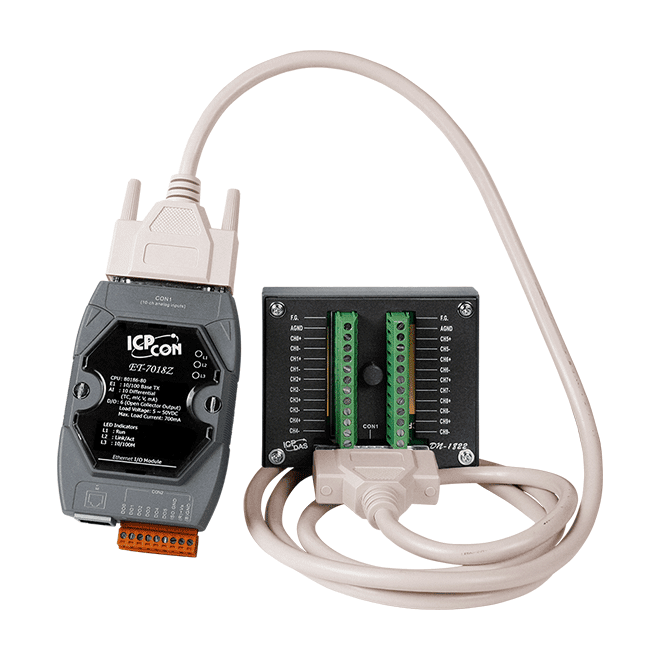

The ICP DAS ET-7018Z/S2 is an Ethernet I/O Module with 10 channel Thermocouple input and 6 channel digital output. This Ethernet I/O module is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. This module comes with daughter board & 1.8 m cable for ease of use and also support current input and voltage input.
The ten input channels can be individually configured for different kinds of analog input, open thermocouple detection and ESD/EFT/Surge protection mechanisms are also included. The six digital output channels can be set as alarm outputs with short-circuit protection and overload protection.
