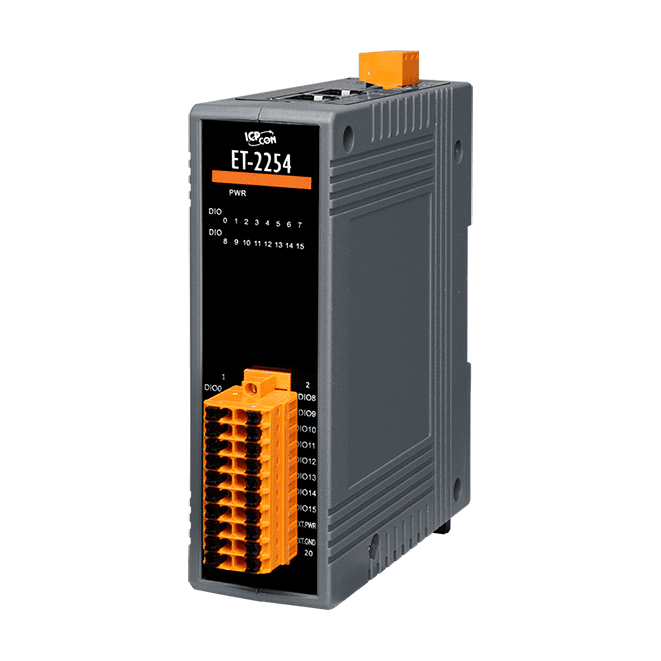

ET-2254P Ethernet I/O Module with 16-ch Universal DIO
- Built-in Web Server
- Support Modbus TCP/UDP and MQTT Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- 16-channel programmable Universal DIO
- Provide Digital Output Maximum Load Current:
- ET-2254P: 350 mA/Channel
- LED Display to Indicate the I/O Status
Providing a variety of digital I/O functions, the ICP DAS ET-2254P module is an Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100M Ethernet network by using Modbus TCP/UDP and MQTT protocols. Modbus has become a de facto standard communications protocol in industrial applications, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2254P module being perfectly integrated with the HMI, SCADA, PLC or other software systems.
The ICP DAS ET-2254P provides 16-channel programmable universal DIO. Each I/O port can be configured as DI or DO port. The ET-2254P provides Digital Output channel can drive 400 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ICP DAS ET-2254P allows daisy chain connection which enables flexibility in locating devices; easy installation and lower infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3000 VDC I/O isolation to enhance noise protection capabilities in industrial environments.
The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ICP DAS ET-2254P module can continuously poll the status of the local DI channels and then write to the remote DO devices via the Modbus/TCP protocol.
It is equipped with removable terminal block connector for easy and robust wiring in industrial applications, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.
