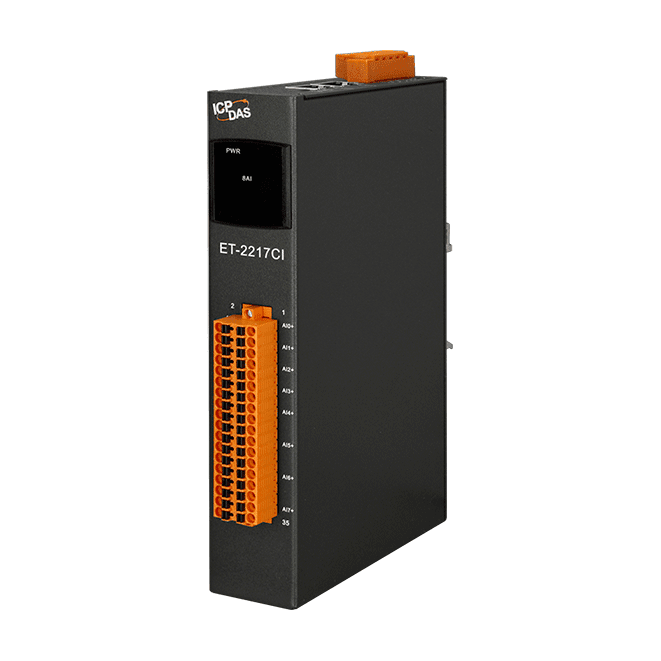

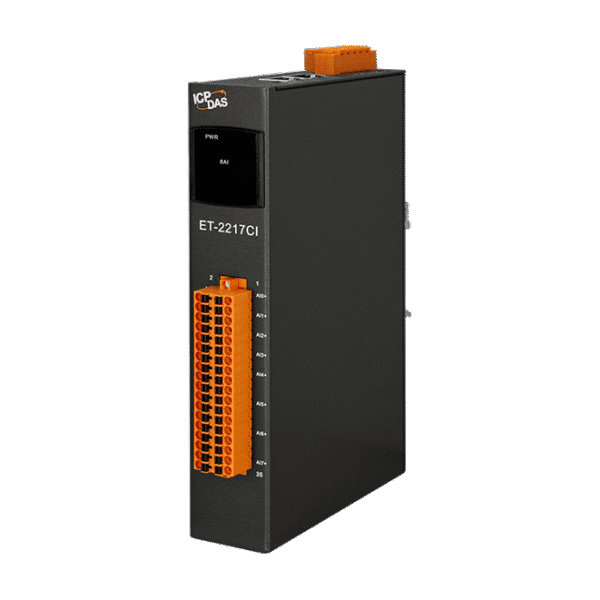

ET-2217CI Ethernet I/O Module with 8-ch Analog Inputs


Key Features

  • Built-in Web Server
  • Support Modbus TCP/UDP and MQTT Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • I/O Pair Connection (Push and Pull)
  • Software Configurable Voltage/Current Input
  • Adjustable Sampling Rate (200Hz/10Hz per channel)
  • Records with Time Stamps for Voltage and Current Measurements
    • ET-2217CI: 320,000 records/each channel
  • Built-in I/O
    • ET-2217CI: 8-channel AI
  • 3000 VDC Channel-to-Channel Isolation


The ICP DAS ET-2217CI is a channel-to-channel isolated analog input module that includes 8 analog input channels. The module provides a programmable input range on all Analog Input channels (±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20mA, 4 to 20mA and ±20 mA). Each analog input channel can be configured for an individual input range, providing a high over-voltage protection of 120 Vdc and 50mA over-current protection at 110 VDC/VAC. Voltage and current input is software configurable.

The sampling rate of the ICP DAS ET-2217CI is adjustable and can be set to either fast (200Hz) or normal (10Hz) mode. It can be used to record voltage and current information, including the date and time stamps. Support is provided for common industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT.

The ICP DAS ET-2217CI module also features per-channel open wire detection for 4 ~ 20 mA input and provides 4 KV ESD/EFT protection, 2 KV Surge protection, and 3000 VDC intra-module isolation and channel-to-channel isolation.
