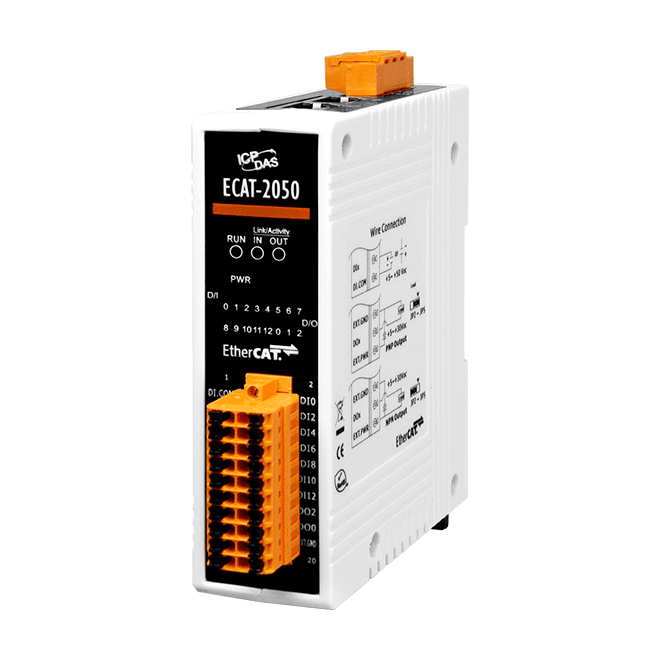

ECAT-2050 EtherCAT Slave I/O Module with Isolated 13-ch DI and 4-ch DO
£175.50
Key Features
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 bus interface
- Distance between Stations up to 100 m (100BASE-TX)
- Support daisy chain connection
- EtherCAT conformance test tool verified
- Removable terminal block connector
- LED indicators for the I/O status
- Built-In digital I/O: 4-ch source or sink type DO & 13-ch DI
- RoHS compliant
- ESD Protection 4 KV Contact for each channel
Description
The ICP DAS ECAT-2000 is equipped with the EtherCAT protocol and installed by daisy chain connection which permits the flexibility in devices installation and reduces infrastructure and operation costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation input and output design protects the ECAT-2000 against the harmful interference and environment.
The ECAT-2050 is built-in isolated 4 source or sink type digital outputs and 13 digital inputs. Users can obtain the input and output status not only via the process data but also from its LED indicators. It has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
