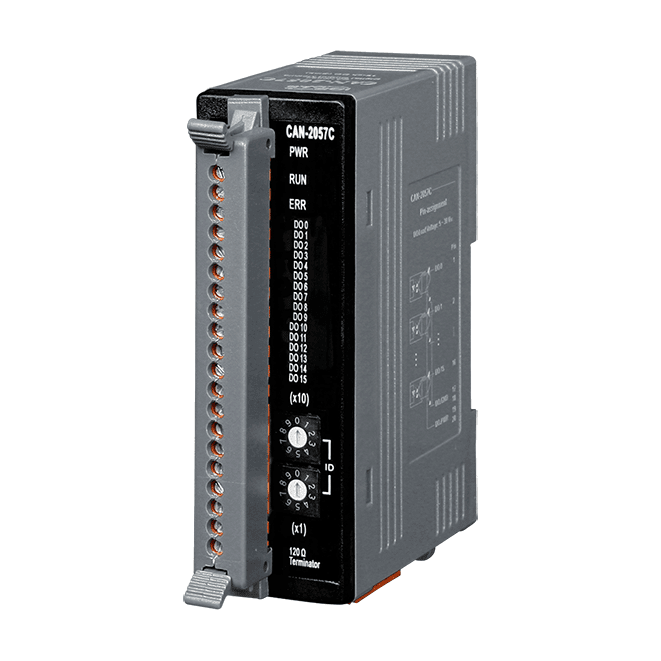

CAN-2057C CANopen I/O Module with 16-channel Isolated (Sink, NPN) Digital Output


Key Features

  • NMT Slave
  • Provide Pair-Connect function
  • Provide default EDS file
  • ESDProtection 4KV Contact for each channel
  • Support Power supply 10 ~30VDC
  • Support CiA-301 v4.02, CiA-401 v2.1
  • Support PDOMapping



CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control.

The ICP DAS CAN-2057C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the digital input status and set the configuration by using standard CANopen protocol. The CAN-2057C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file.

The ICP DAS CAN-2057C has 16-channel isolated open-collector output. It can be used to various applications, such as drive relay, light control, resistance load and so forth. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.


  • Alarm detector
  • Switch detection
  • I/O pair-connection
