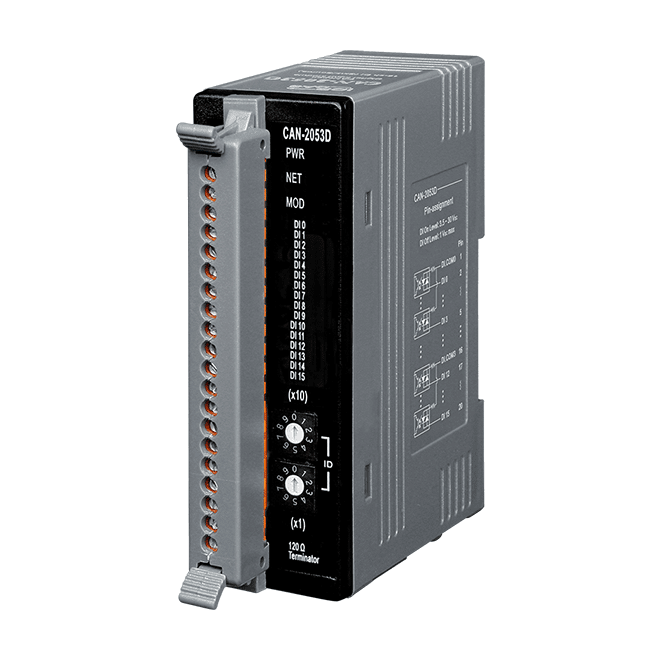

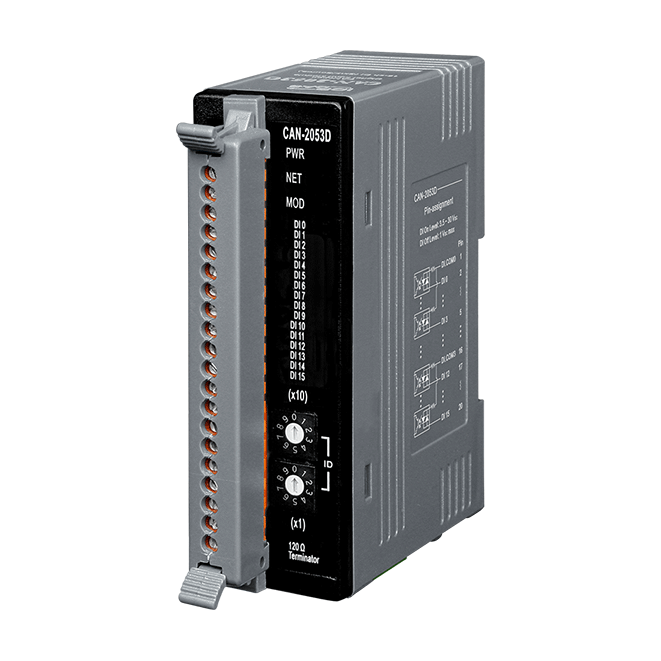

CAN-2053D DeviceNet Slave Module with 16-channel Isolated (Wet) Digital Input

£175.00

Add to quote

Key Features

  • DeviceNet general I/O slave devices
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Provide EDS file for DeviceNet master interface
  • Support Application: PNP, NPN, TTL, and Relay Contact
  • ESD Protection 4 kV Contact for each channel

CE UKCA FCC RoHS WEEE

Description

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control, aircraft engines monitoring, factory automation, medical equipment’s control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The ICP DAS CAN-2053D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital output status and set the configuration via DeviceNet EDS file. The CAN-2053D has 16-channel isolated sink/source input and it can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By the DeviceNet masters of ICP DAS, users can quickly build a DeviceNet network to approach your requirements.

Applications

  • Alarm detector
  • Switch detection

The ICP DAS CAN-2000D series works seamlessly with the following DeviceNet masters or gateways:-

  • Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  • OMRON CJ1W-DRM21
  • OMRON CS1W-DRM21-V1
  • OMRON C200HW-DRM21-V1
  • OMRON 3G8F7-DRM21-E

CAN-2053D_en
