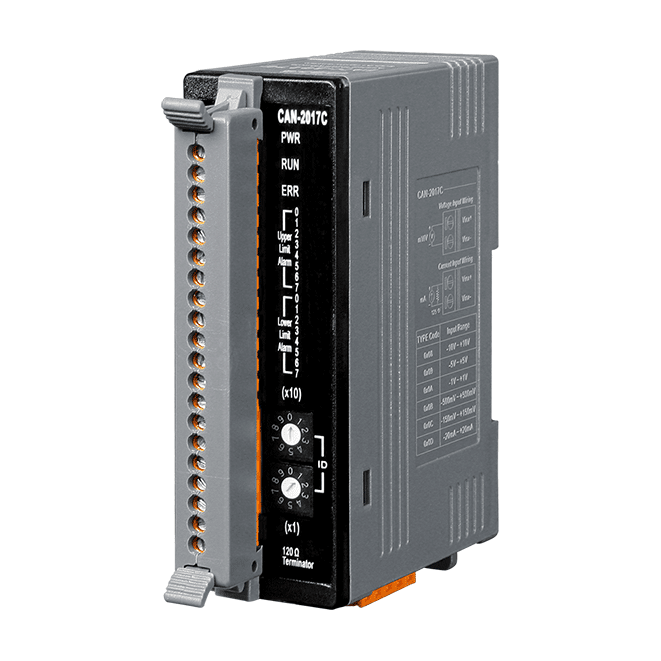

CAN-2017C CANopen I/O Module with 8-channel Analog Input

£289.00

Key Features

  • NMT Slave
  • NMT Error Control support Guarding and Heartbeat
  • Provide default EDS file
  • Passed the validation of CiA CANopen Conformance Test tool
  • ESD Protection 4 KV Contact for each channel
  • Support Power Supply +10 ~ +30 VDC
  • Support CiA DS-301 v4.02, DSP-401 v2.1
  • Support Dynamic PDO

CE UKCA FCC RoHS WEEE

Description

CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipment control, remote data acquisition, environmental monitoring, and packaging machines control.

The ICP DAS CAN-2017C module follows the CiA DS-301 version 4.02 and DSP-401 version 2.1. It is easy to access the differential analog input status and set the configuration by using the standard CANopen protocol.

The CAN-2017C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, the provided EDS file is standard for any other standard CANopen masters. By using the 8-channel analog input and the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

Applications
