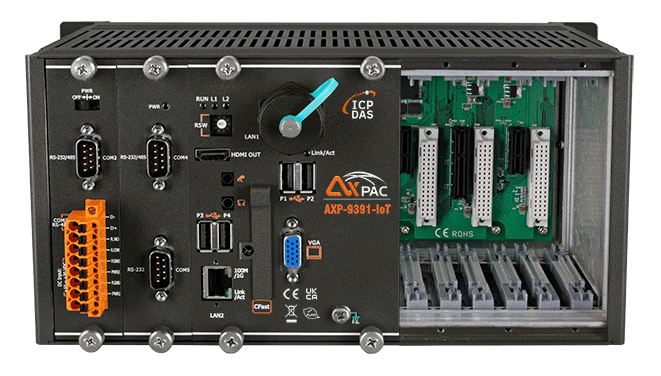

AXP-9391-IoT 3-slot Metal Standard PAC with E3950 CPU and Win10 IoT


Key Features

• Windows 10 IoT Enterprise (64-bit)
• Intel® Atom E3950 Processor (1.6 ~ 2.0 GHz, 4C4T)
• 64 GB SSD
• VGA / HDMI Display Output
• 2 x 10/100/1000M Ethernet Ports
• Redundant Power Input


The ICP DAS AXP-9391-IOT are Windows 10 IoT based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC.

AXP-9391-IOT is equipped with an Intel Atom E3950 CPU, 3 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA, HDMI, USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K, I-97K, e-9K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.

AXP-9000-IoT has a built-in Windows 10 IoT Enterprise operating system, which can support both the Universal Windows App and traditional Windows applications simultaneously. For software development tools, it can maintain maximum sharing with Windows 10, and applications can be quickly ported to AXP-9000 and deployed in a variety of harsh environments.
