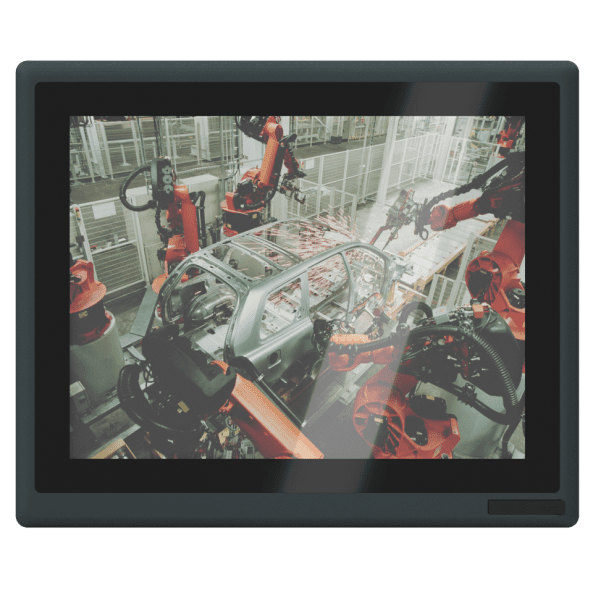

ALAD-A1510T 15.6“ Industrial Resistive Touch Panel PC with Intel® Elkhart lake Soc CPU series processor

Key Features

  • Aluminium alloy die-cast body, full flat mirror panel
  • 15.6-inch multi-point resistive touch screen
  • Intel® Elkhart lake Soc CPU, fanless cooling design
  • 1*DDR4 3200MHz SODIMM, supports up to 32GB
  • 1*MiniPCIe, 1*M.2 B-Key Type 3042/3052
  • 4*COM, 2*LAN, 4*USB3.2, optional 1*8-bit DIO (optional with COM1/2)
  • 2.5-inch SATA disk, 1*mSATA, 1*Line out, 2*2W power amplifier
  • DC 9~36V wide voltage DC power supply
  • Standard VESA mounting and panel flush mounting

Description

The JHCTECH ALAD-A1510T is a fully flat mirror tablet computer equipped with Intel® Elkhart lake Soc CPU series processor. It adopts a 15.6-inch 1920*1080 resolution LCD screen and a fully-fitted surface projection multi-point resistive touch screen.

This panel PC has a comprehensive I/O interface and supports 1*2.5-inch SATA drive and 1*mSATA dual storage, built-in 1*Mini PCIe and 1*M.2 3042/3052 expansion and DC 9~36V wide voltage DC power supply.

The panel PC housing is made of aluminium die-casting and has no fan for heat dissipation. It has a variety of installation methods and is suitable for intelligent MES systems and equipment management HMIs.

ALAD-A1510T(P) DS-EN A0.1
