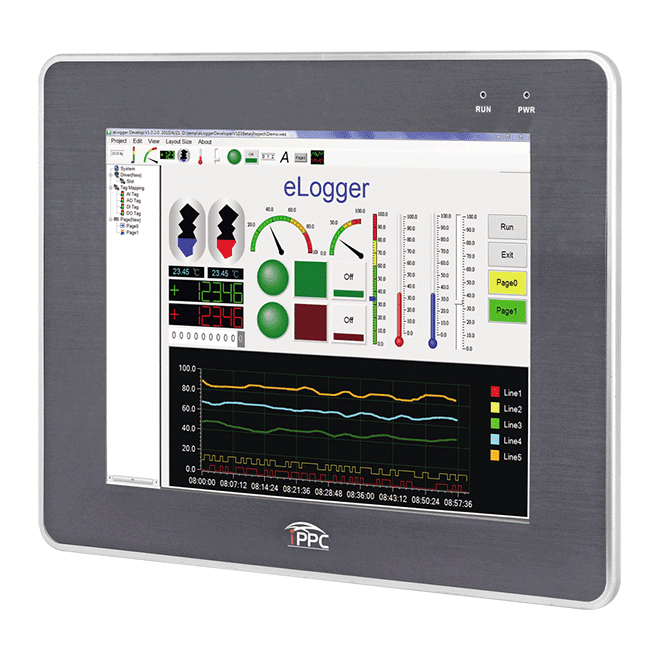

iPPC-4801-WES7 10.4″ Panel PC with Atom E3845 CPU & WES7 OS


Key Features

• Windows Embedded Standard 7 SP1 x64 (64-bit)
• Intel® Atom™ E3845 1.91 GHz
• 32 GB SSD
• 64-bit Hardware Serial Number for Software Protection
• Rich I/O Expansion Ability (RS-232/RS-485, FRnet)
• 2 10/100/1000M Ethernet Ports
• Audio with Microphone-In and Earphone-Out
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C


The ICP DAS iPPC-4801-WES7 is a series of fanless industrial touch panel PC providing a perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is based on WES7 operating system running on a powerful Intel Atom E3845 CPU is based, comes with 10.4″ LCD monitor and a variety of connective interfaces including dual Gigabit Ethernet, USB port, RS-232, RS-422 and RS-485. The WES7 operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. The remote I/O expansion is available for connecting to our Ethernet I/O modules or RS-485 I/O modules.

The ICP DAS iPPC-x801-WES7 is designed for panel mount installation with NEMA 4/IP65-compliant front bezels to withstand sprayed water, humidity and extreme dust and operating over a wide temperature range of -20 °C to 60 °C. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.
