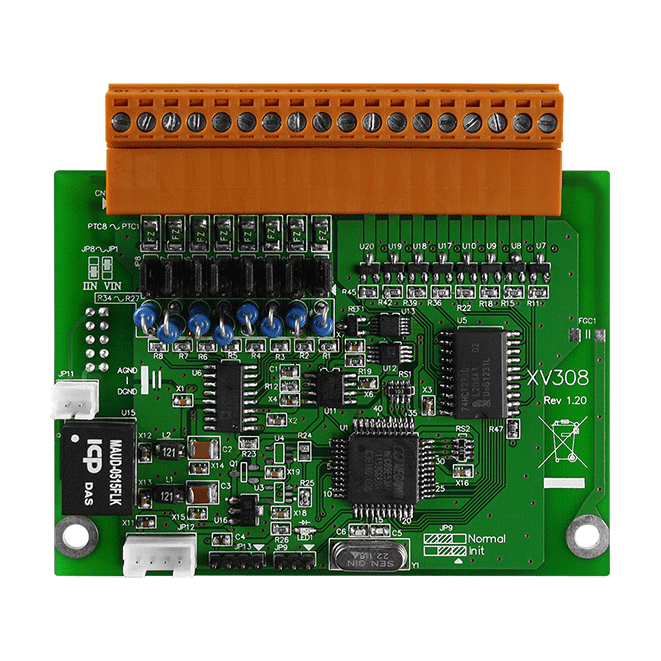

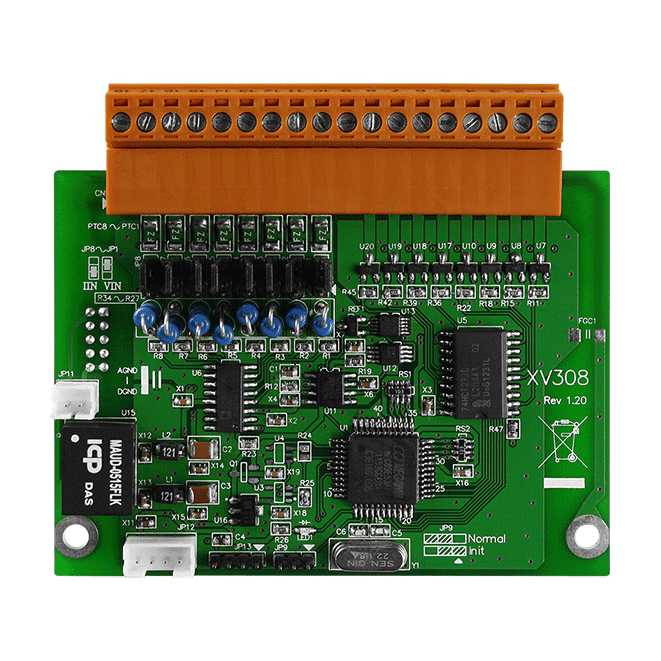

XV308 8-ch Isolated AI & 8-ch Isolated Universal Digital I/O Expansion Board


Key Features

  • 8-channel Analog Input
  • 8-channel Universal Digital Input/Output
  • Digital Input Channels can be used as 32-bit Counters
  • Configurable Power-on Value Settings
  • Open Wire Detection for 4 ~ 20 mA
  • Individual Channel Configuration
  • 120 VDC Overvoltage Protection for Analog Input
  • 60 VDC Overvoltage Protection for Digital Input
  • Overload Protection for Digital Output
  • Short-circuit Protection for Digital Output


The ICP DAS XV308 provides 8 channels for analog input and 8 channels for universal digital input/output. Analog Input channels are Single-ended type and provide a programmable input range (±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA). Each Analog Input channels also provides a high over-voltage protection of 120 VDC. Universal digital input/output can be selected via wire connections. Digital input channels are source-type and can be used as 32-bit counters. Digital output channels are sink-type with short circuit protection and options for configuring power-on digital output values.
