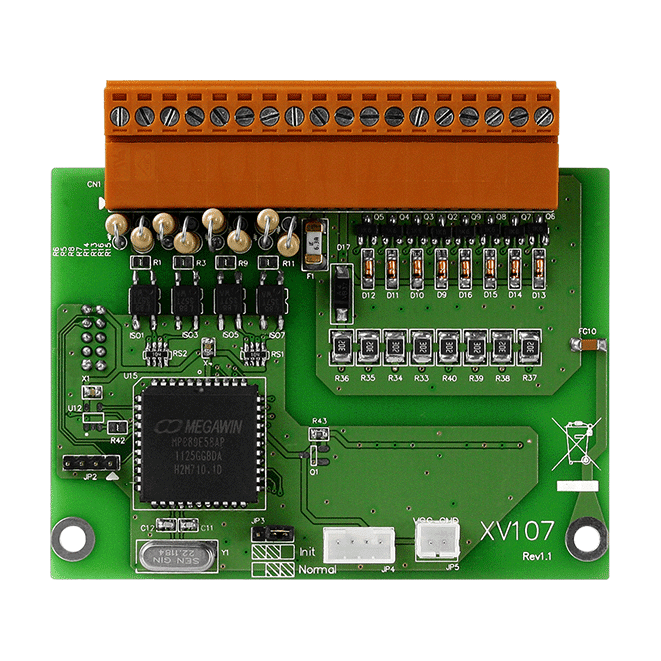

XV107 8-ch Isolated Dl & 8-ch Isolated DO Expansion Board


Key Features

  • Source-type Digital Input
  • Sink-type Digital Output
  • All Input Channels Can Be Used As 32-bit Counters
  • Configurable Power-on Value Settings
  • 70 VDC Over-voltage Protection for Digital Input
  • Overload Protection for Digital Output
  • Short-circuit Protection for Digital Output


The ICP DAS XV107 provides 8 channels for digital input and 8 channels for digital output, each of which features photo-couple isolation. The XV107 supports sink-type output with short circuit protection, while the input is source-type. All input channels can be used as 32-bit counters. There are options for configuring power-on digital output values, 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
