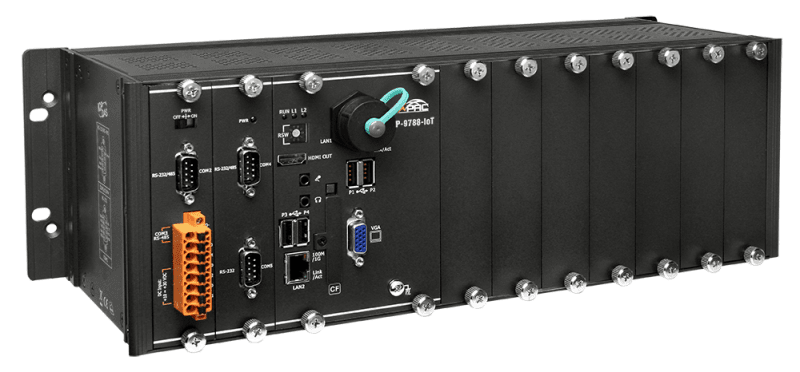

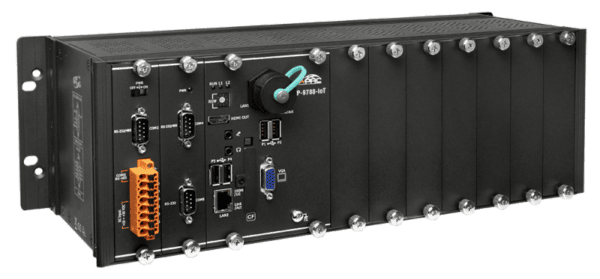

XP-9788-IoT 7-slot Win-GRAF based XP-9000-IoT series PAC

Description

The ICP DAS Win-GRAF XP-9000-IoT series are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface. Local I/O slots are available for use with  I-9K or I-97K series I/O modules and remote I/O expansions are available for use with Ethernet or RS-485 I/O modules.

The benefits of running Windows 10 IoT Enterprise on 64-bit x86 platform are as following:-

1. Faster data computing: with Intel E3845 CPU, Win-GRAF now can work more effectively on IoT platform.
2. Higher Internet security: level up OS leads to upgrade system security.
3. Rich applications developed on Windows 10: support for Universal Windows applications.

The ICP DAS XP-9788-IoT PAC supports running Win-GRAF. The Win-GRAF is an IEC 61131-3-compliant programming platform for developing industrial control and automation solutions. It is a software development platform that enables users to create customized software applications for a wide range of industrial control systems and can be implemented on all ICP DAS Win-GRAF PACs.

The open architecture of Win-GRAF allows users to integrate and customize the specific applications. HMI communication interfaces for Indusoft and eLogger (ICP DAS developed HMI) are part of the Workbench tools. Programming interfaces for C++, C#, LabVIEW enables data exchange between runtime and third party software.

The Win-GRAF Workbench provides a wide range of libraries and pre-built function blocks that can be used to create complex control systems quickly and efficiently. Furthermore, the integrated development environment (IDE) that includes a user-friendly graphical user interface, a code editor, debugging tools, and simulation capabilities, making it easier for developers to test and validate their applications.

Software Features:

• Support the free-of-charge eLogger HMI software.
• Support various protocols:
  Modbus TCP/RTU/ASCII Master, Modbus TCP/RTU Slave, and DCON.
• Data Binding function allows exchanging data among PACs.
• On-line Change function can make minor changes during the project is running. There is no need to call off the running program.
• Support Online debug/control and Offline simulation for programs.
• Customized Function Blocks can be created by using Visual Studio 2008 and run in Win-GRAF.
