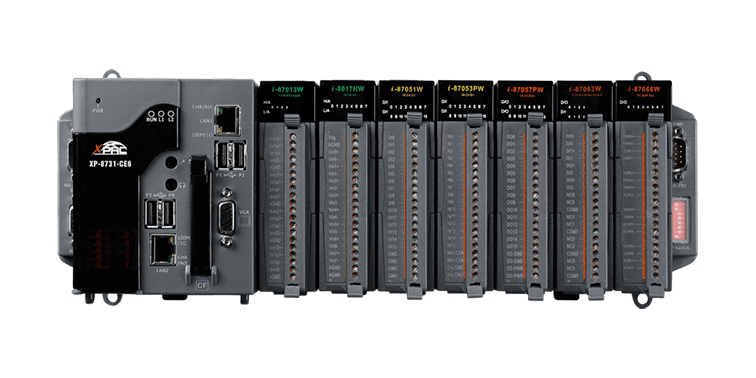

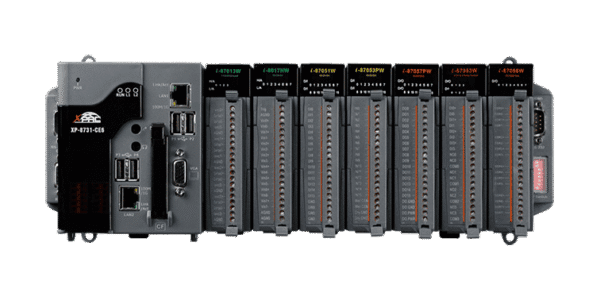

XP-8731-CE6 7-slot Standard PAC with x86 CPU and WinCE 6.0


Compared with traditional IPC + PLC solutions, ICP DAS XPAC reduces overall system cost, space and gives you all the best features of IPC and PLC

Key Features

• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
• Various Communication Interfaces
• Built-In VGA Port
• Built-In Real-time clock
• 7 x I/O Expansion Slots
• Built-In dual Watchdog Timer
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C



The ICP DAS XP-8731-CE6 series is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped with a x86 CPU (1 GHz) dual-core, various connectivity (VGA, USB, Ethernet, RS-232/485) and 7 I/O slots for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The benefits of running Windows CE 6.0 on XP-8731-CE6 include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control.

The XP-8731-CE6 is also capable of running PC-based control software such as Visual Basic .NET, Visual C#. It has all of the best features of both traditional PLCs and Windows capable PCs. For software copy protection, programmers can design software based on the 64-bit hardware serial number for making software copy protected.

The ICP DAS XP-8731-CE6 series offer a broad range of communication interfaces such as Ethernet, RS-232/485, USB, CAN BUS, HART, PROFIBUS and GSM/GPRS/GPS for I/O expansion and communicating with other external devices.
