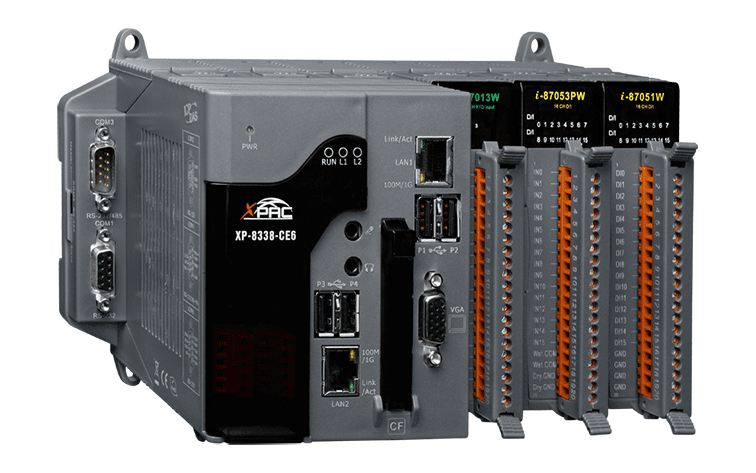

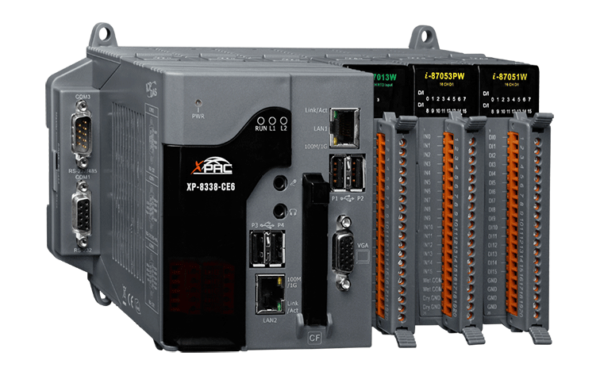

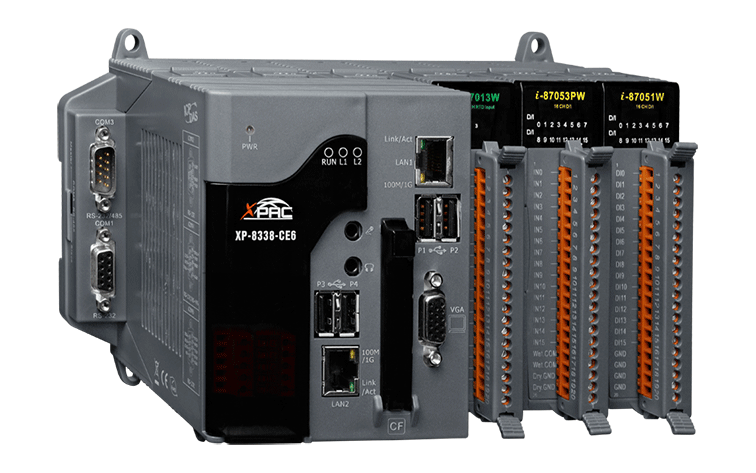

XP-8338-CE6 3-slot Win-GRAF Based PAC with x86 CPU and WinCE 6.0
• x86 CPU, 1.0 GHz, dual-core
• Windows CE 6.0
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs
• Support Dual PAC Redundant System
• Operating Temperature: -25 °C ~ +75 °C
The Win-GRAF XPAC-8000-CE6 Series (XP-8038-CE6/XP-8138-CE6/XP-8338-CE6/XP-8738-CE6) is the new generation WinCE 6.0 based Win-GRAF XPAC (Programmable Automation Controller) from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).
The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running WinGRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application’s design is more convenient and more practical.
The ICP DAS XP-8338-CE6 series offers vast range of communication interfaces including Ethernet, RS-232/485, USB, CAN BUS, PROFIBUS and GSM/GPRS/GPS for I/O expansion and interacting with other external devices.
