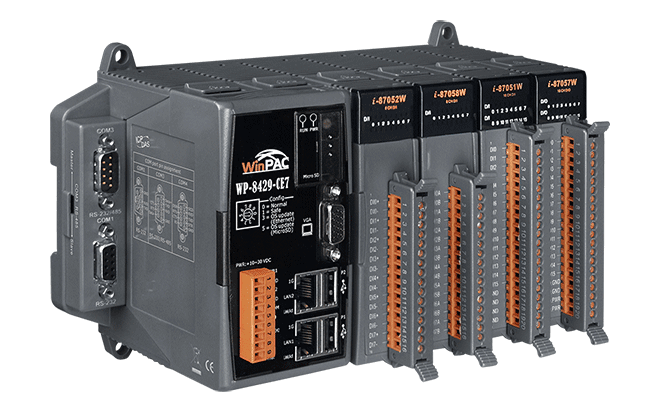

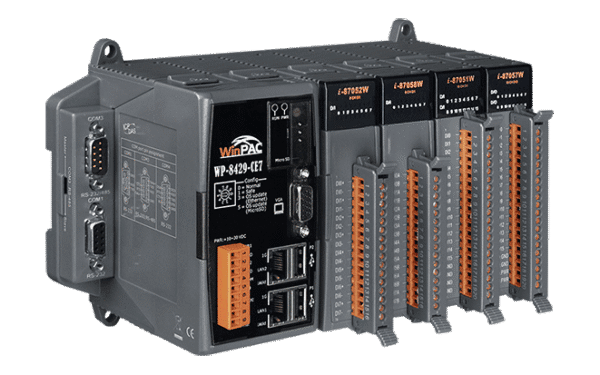

WP-8429-CE7 InduSoft (300 tags) Based, 4-slot WinPAC


Compared with traditional IPC + PLC solutions, ICP DAS WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC

Key Features

• Cortex-A8, 1GHz CPU
• 512 MB DDR3 and 256 MB Flash
• Windows CE 7.0 Professional
• Hard Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Slots
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input
• Operating Temperature: -25 ~ +75°C



The ICP DAS WP-8429-CE7 is the new generation programmable automation controller that is equipped with Cortex-A8 CPU running a Windows CE 7.0 operating system. This controller has a variety of input/output ports (i.e. VGA, USB, Ethernet, RS-232/485) and a range of I/O modules that can be integrated with the WP-8828-CE7 for measurement and control industrial applications. ICP DAS WP-8429-CE7 is equipped with InduSoft software Runtime pre-installed.  InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.

The benefits of running Windows CE 7.0 on this programmable automation controller includes hard real-time capability and achievable deterministic control.

The ICP DAS WP-8429-CE7 offer a broad range of optional communication interfaces such as CAN BUS, HART, PROFIBUS and GSM/GPRS/GPS for I/O expansion and communicating with other external devices.
