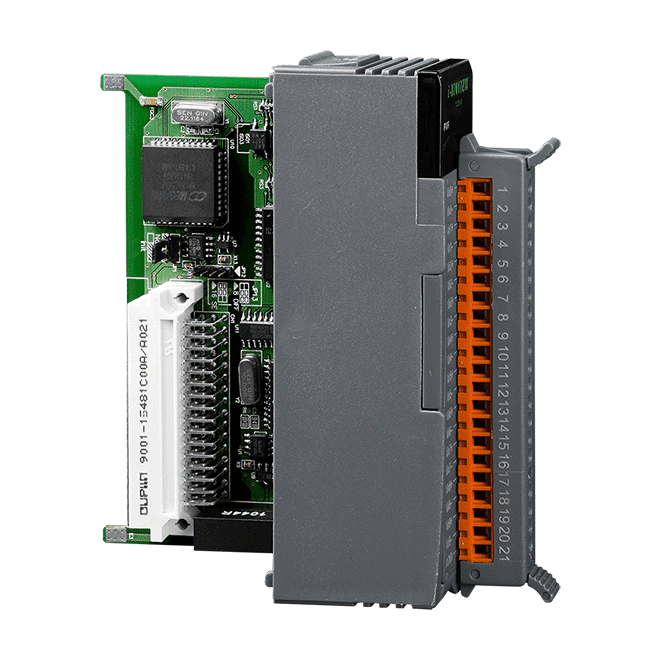

I-87017ZW-G 10/20-channel analog input module with high voltage protection



The ICP DAS I-87017ZW is an analog input module that includes 10 differential or 20 single-ended analog input channels. It provides a programmable input range on all analog inputs. (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V,+/-10 V, +/-20 mA or 0 ~ 20 mA) Each analog input can be configured for an individual range that provides 240 Vrms high over-voltage protection and 50mA over-current protection at 110VDC/VAC. Voltage and current inputs are jumper selectable.

The sampling rate of the I-87017ZW is adjustable and is available in either fast or normal mode. The module also features per-channel open wire detection for 4 ~ 20 mA inputs that provides 4 KV ESD protection as well as 3000 VDC intra-module isolation.
