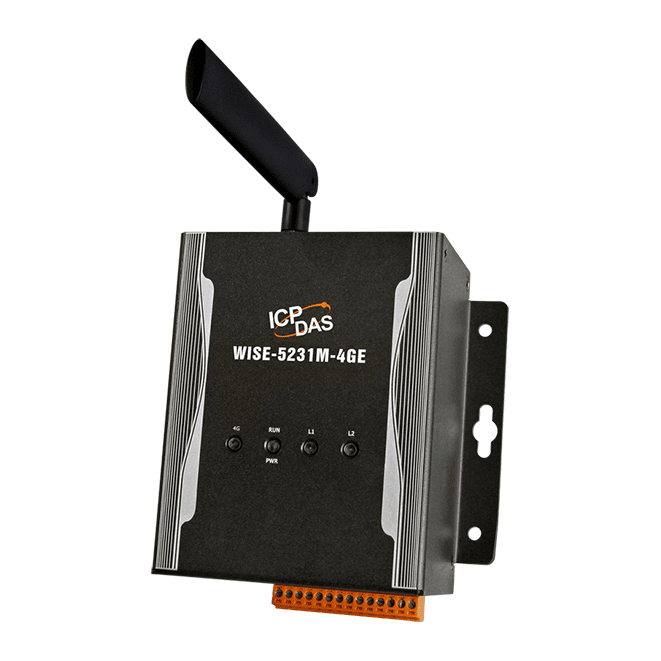

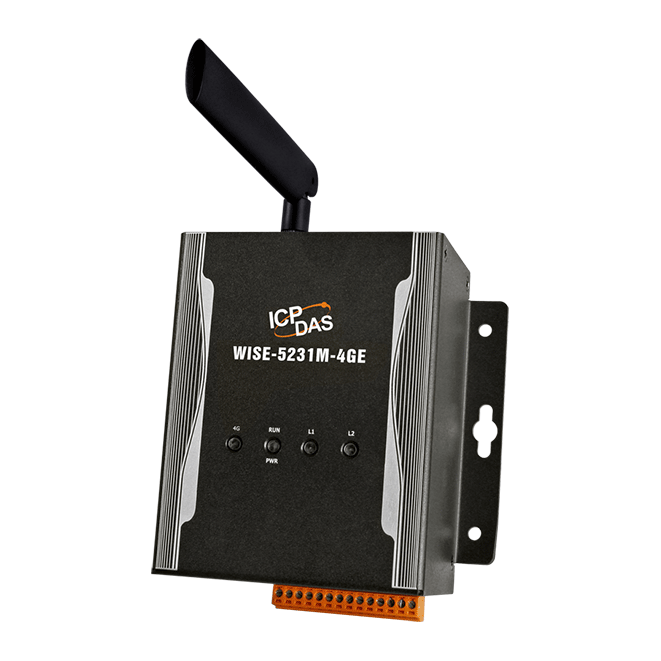

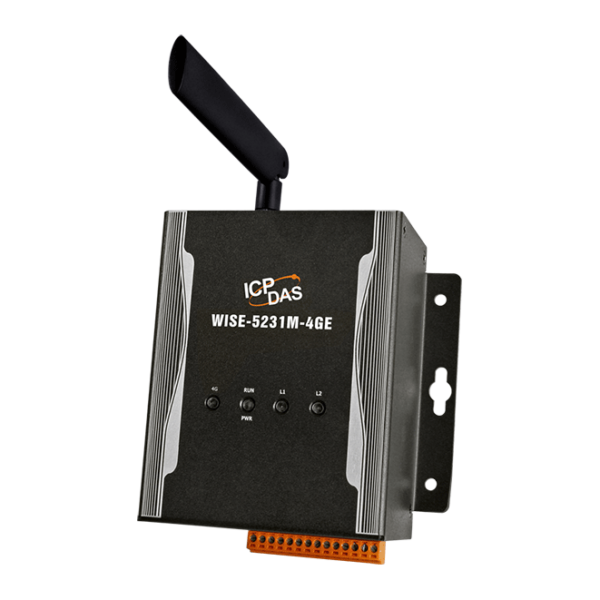

WISE-5231M-4GE Intelligent (IIoT Edge Controller) user-defined I/O Modules with SMS & Data Logger Function


Key Features

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Support XV-board.
• Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
• Support Modbus TCP Slave modules (Up to 16).
• Timer and Schedule functions supported.
• Data logger and data files send back function supported.
• Active I/O sending function for real-time data transfer.
• CGI Command sending and receiving function supported for IP Camera and Network device.
• Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.
• Support Line, SMS and Email real-time message sending.
• Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix).
• Support IoTstar Cloud Management Software.
• Support 4G/3G wireless data communication. (Frequency Band for EMEA, Korea, Thailand, India and Taiwan)


The ICP DAS WISE-5231M-4GE is an intelligent user-defined controller designed for remote logic control and monitoring applications. This module supports Modbus TCP/RTU protocol and has a built-in data logging functionality for remote monitoring applications that required data storage.

A range of I/O channels can be added to the WISE-580x series by using either the XW embedded boards or M-7000 series and Modbus RTU slave devices.

The WISE-WISE-5231M-4GE supports SMS commands and real time alarm message notification functions, this allow engineers to efficiently monitor, modify I/O channel values and set logic rules via a mobile phone and monitor a remote site/devices on the move.

The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker. WISE also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE the best choice in the IoT Age.
