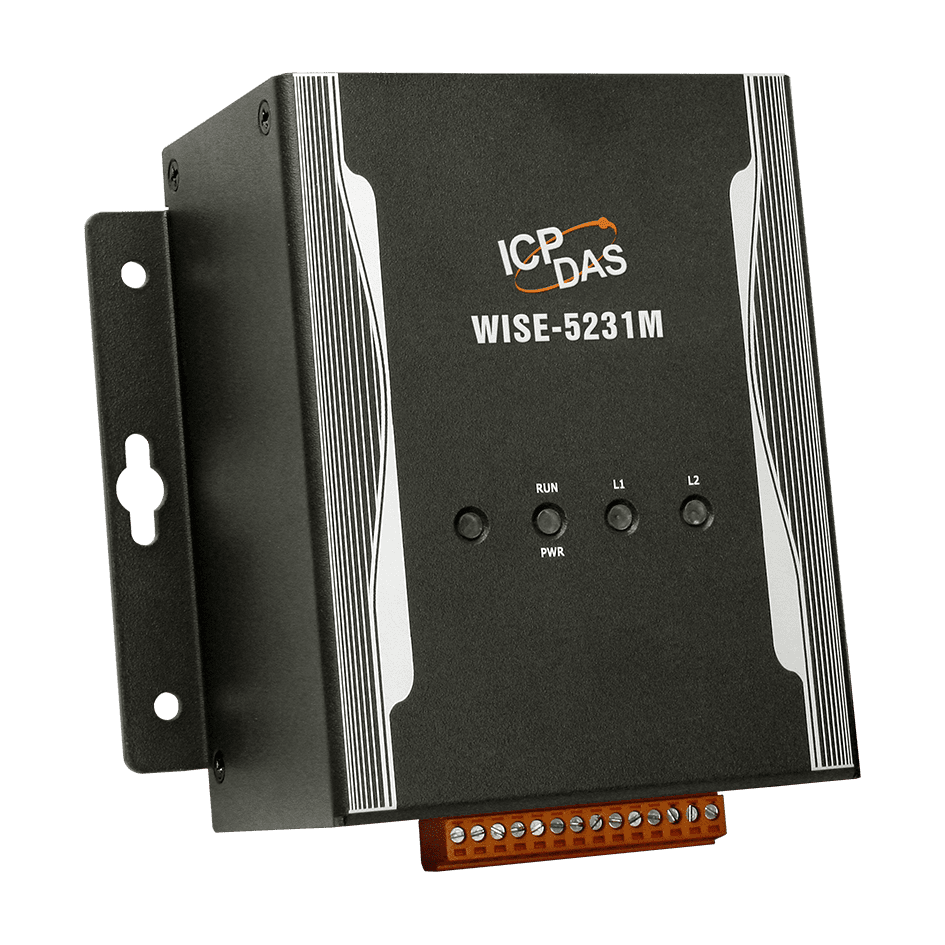

WISE-5231M IIoT Edge Controller with metal casing

£669.00

Add to quote

Key Features

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Support XV-board.
  • Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
  • Support Modbus TCP Slave modules (Up to 16).
  • Timer and Schedule functions supported.
  • Data logger and data files send back function supported.
  • Active I/O sending function for real-time data transfer.
  • CGI Command sending and receiving function supported for IP Camera and Network device.
  • Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.
  • Support LINE and Email real-time message sending.
  • Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix).
  • Support IoTstar Cloud Management Software.
CE FCC RoHS WEEE

Description

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending functions.

WISE-5231M provides more supports in I/O module connection, I/O data logging and IoT platform integration. It allows connection to XV-board, DCON I/O modules, and Modbus TCP/RTU Slave modules all together. The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker.
WISE-5231M also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE the best choice in the IoT Age.

WISE-523x_WISE-224x-EN (1)
