VCG-1500WG-LTE Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C)

VCG-1500WG-LTE Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1-SIM Card Slot, 802.11n, GPS, -25~65 degrees C)

£299.00

Add to quote

Features

  • Dual module SIMs for network load balancing and redundancy
  • Wi-Fi compliant IEEE 802.11b/g/n/ac dual-band for mobile client connectivity
  • 5-port Gigabit Ethernet, built-in redundant VRRP protocol
  • 2 DI, 1DO and 1 serial console port (RS232 or RS485) for Modbus applications
  • Multiple VPNs with IPSEC, OpenVPN, PPTP, L2TP, GRE and VPN Failover
  • Full security with VLAN, NAT,DMZ, Static routing, firewall and IP/MAC/port filtering
  • Supports CMS for remote management
  • -40 to 75 degrees C operating temperature and fanless design
  • PLANET Smart Discovery utility and NMS controller supported

Description

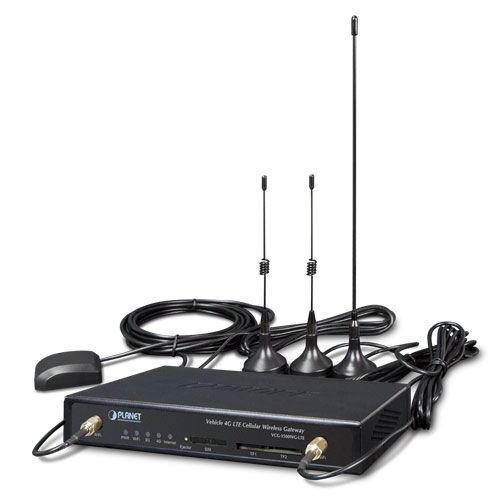

The PLANET VCG-1500WG-LTE is a reliable, secure and high-bandwidth communications vehicle cellular gateway for demanding mobile applications and IoV (Internet of Vehicles) deployments. It features 4G LTE (Long Term Evolution), wireless AP, five Ethernet ports (4 LAN and 1 WAN), GPS,  VPN technology and bandwidth management bundled in a mountable metal case to establish a public network connection and allows passengers to access Internet.

The VCG-1500WG-LTE is able to reach a download (DL) speed of up to 100Mbps and an upload (UL) speed of 50Mbps. The Cellular Gateway also supports multi-band connectivity including LTE FDD, TDD, HSDPA, WCDMA and GSM for a wide range of applications.

With an integrated 802.11n Wireless Access Point, the gateway supports data rate up to 300Mbps and is also compatible with 2.4GHz 802.11b/g/n equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN.

The VCG-1500WG-LTE is equipped with one convenient feature and that is GPS (global positioning system). It is a positioning system based on a network of satellites that continuously transmit necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked anytime.
