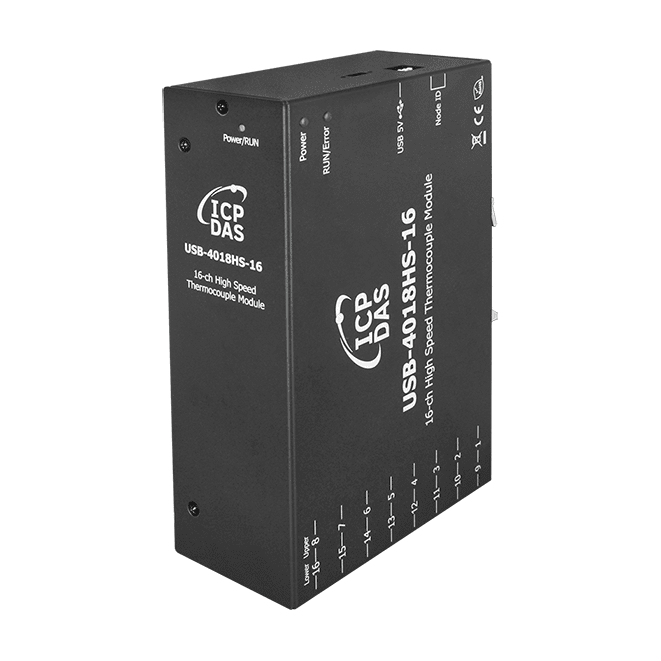

USB-4018HS-16 16-ch High Speed Thermocouple Measurement USB I/O Module with 3000 VDC intra-module isolation


Key Features

  • 16-Channel Analog Inputs
  • High Speed Thermocouple Measurement
  • USB 2.0 Full-Speed (12 Mbps)
  • No external power supply (USB Bus Powered)
  • LED Indicate the Power status
  • Lockable USB cable
  • 3000 VDC intra-module isolation


The ICP DAS USB-4000 series provided by ICP DAS is a new solution for data acquisition. It provides easy USB plug-and-play operation and equips accurate measurement for all kinds of automation applications. Compared with the traditional PC-based cards like PCI, PC/104 and ISA cards, users can achieve data acquisition easier and quicker with USB-4000 series.

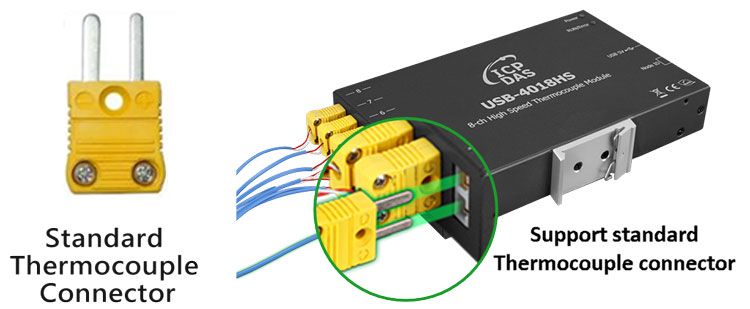

The USB-4018 series is an 8/16-channel high speed thermocouple measurement module and supports thermocouple devices with J, K, T, E, R, S, B, N, C, L, M and LDIN43710 types. The USB-4000 series also feature intra-module isolation. The USB-4018 series provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel.  The USB-4018HS-16 come with a software utility that enable users to configure and test the USB-4018HS-16 directly and easily without any coding.


• SMD assembly manufacturing• PC board manufacturing
• Pharmaceutical industry• Footwear manufacturing
• Any temperature measurement required industries• Food industry
