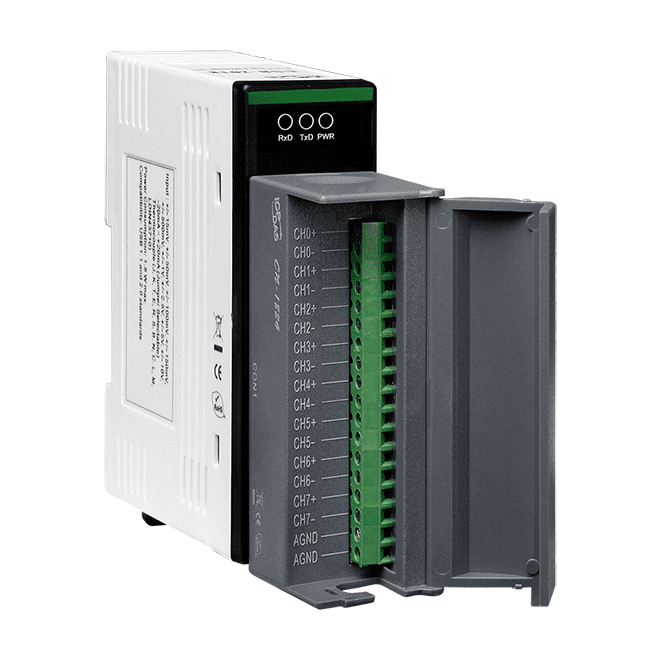

USB-2019/S USB I/O Module with 8-ch Universal AI & High Voltage Protection


Key Features

• 8 Differential Universal Analog Input Channels
• 4kV ESD protection
• Wide Operating Temperature Range
• 240 Vrms Overvoltage Protection
• 3000 VDC Intra-Module Isolation
• USB 2.0 Full-Speed (12 Mbps)
• USB Bus Powered
• Lockable USB cable
• Driver Free


The ICP DAS USB-2019/S provides an easy USB plug-and-play operation with accurate measurement for all kinds of industrial automation applications. Compared with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve data acquisition easier and quicker via USB-2019 I/O module.

The ICP DAS USB-2019 is an 8-channel universal analog input module with over-voltage protection of up to 240Vrms and supports thermocouple input types such as J, K, T, E, R, S, B, N, C, L, M and LDIN43710. The USB-2019/S also provides extremely accurate thermocouple measurement with automatic cold-junction compensation for each channel.

This unit also features open wire detection for thermocouple and 4 ~ 20 mA inputs for each channel and users can configure and test USB-2019 directly and easily without any coding via the ICP DAS USB I/O utility. A user-friendly API library is available for users to quickly develop their applications.
