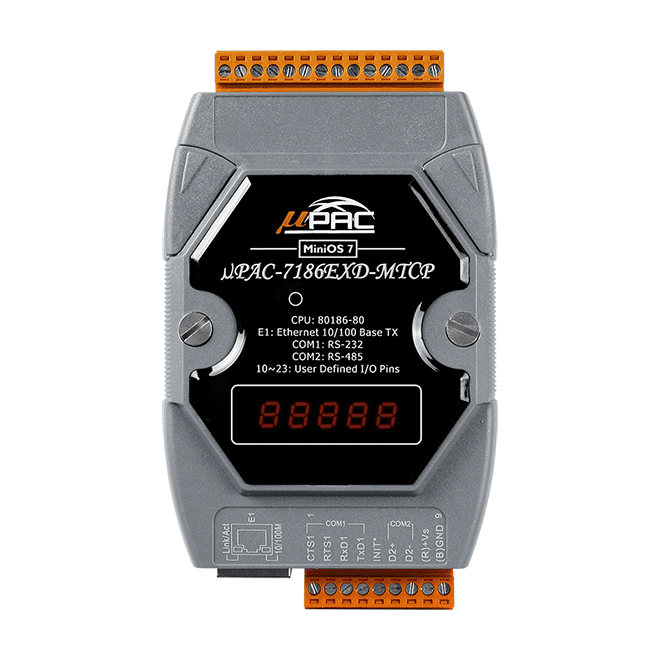

uPAC-7186PEXD-MTCP-G PoE Palm-sized Programmable Modbus Gateway with 80186-80 CPU, Modbus Firmware & 7-Segment LED Display

£315.00

Key Features

  • Incorporate Serial Devices in an Ethernet network
  • Supports Modbus TCP to RTU Gateway
  • Power over Ethernet (PoE)
  • Built-in High Performance MiniOS7 from ICP DAS
  • Easy-to-use Software Development Tool Kits (Using C language)
  • Various Communication Interfaces
    ‣ 10/100 Base-TX Ethernet
    ‣ RS-232/485
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus Interface
  • Programmable LED Indicator
  • Build-in Watchdog Timer
CE FCC RoHS WEEE

Description

The ICP DAS uPAC-7186PEXD-MTCP is a family of Programmable Device Servers, also known as “Serial-to-Ethernet gateway”, that are designed for linking RS-232/485 devices to an Ethernet network. The μPAC-7186PEXD-MTCP also works as a Modbus TCP to RTU gateway that supports most SCADA/HMI communications based on the Modbus TCP protocol with Power over Ethernet (PoE) function and 7-Segment LED Display.

ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-7186PEXD-MTCP also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186PEXD-MTCP, you can choose one of them to expand hardware features.

Datasheet-upac-7186pex-mtcp
