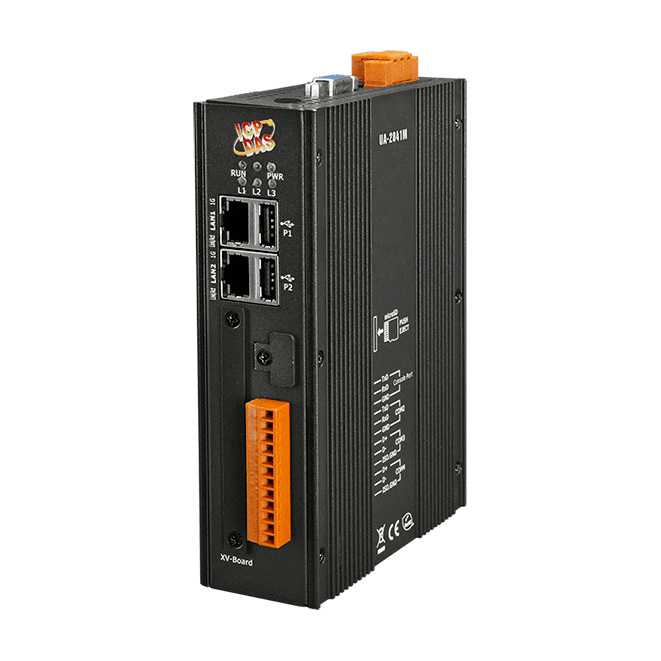

UA-2841M IIoT Communication Server with ARM Quad-core CPU and 2 Ethernet Ports


Key Features

  • Simultaneous Writing for Remote Database and Local Data Logger
  • Offline Data Recovery Mechanism for Remote Database
  • Support to Enable OPC UA, MQTT, SNMP and RESTful at the Same Time
  • MQTT Broker (Including WebSocket)
  • Support a Complete Information Protection Mechanism
    – HTTPS, SNMP v3, Communication Encryption, Block List
  • IoT Cloud Platform Connection
    – Microsoft Azure, Amazon Web Services, IBM Bluemix, Alibaba Cloud
  • IFTTT Logic Control Triggers the APP Notification Function
  • PID Logic Operation Function


The ICP DAS UA-2841M is an IIoT (Industrial IoT) Communication Server for integrating the system and devices of IT and OT. UA features the IIoT Gateway function that allows users to access the remote I/O modules and controllers via Modbus TCP/RTU/ASCII, MQTT, and EtherNet/IP communication protocols.

IIoT gateway function can also convert these I/O data to OPC UA or MQTT protocols for the needs of connecting with the MES, ERP, SCADA and Cloud services. Besides, UA features the Data Logger function that allows users to write the I/O data directly into the remote database (MS SQL / MySQL / MariaDB), and save to the local fi le (.csv) as the historical records.

UA supports Cloud platform that can connect to Amazon AWS, Microsoft Azure or other Cloud platforms to send over the I/O data; and support Cloud logic service platform “IFTTT” which can connect many web APPs that allows users to receive first-hand notification messages through the most commonly used mobile APPs when an event triggered. UA Series enhances the networking and interoperability between IT and OT. Through UA series, users can easily deploy for Industrial IoT.


  • Industrial IoT communication protocol conversion
  • IT communication protocol conversion
  • Local and remote database records

    UA series supports one optional XV-board module for I/O or RS-485 expansion.

    IIoT Cloud Solution- UA Series
