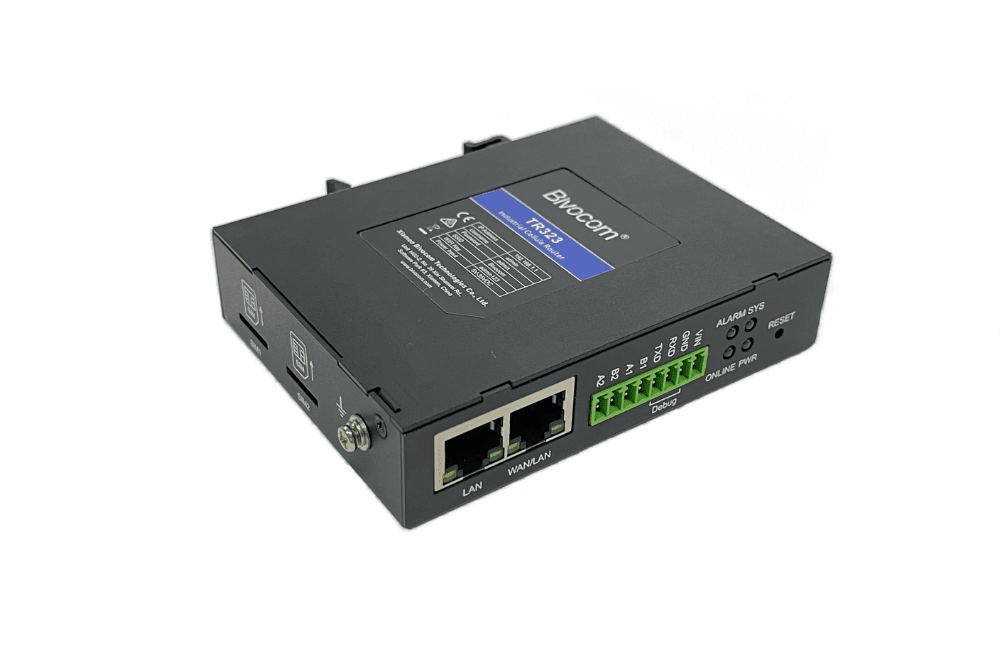

TR323-NR-GS Industrial 5G, Dual SIM IoT Router with GNSS Function, 1x RS-232 & 2x RS-485 ports



  • Industrial MCU built in, rugged and reliable
  • Web server/Utility configuration
  • 5G Network & GNSS Function
  • Dual SIM for failover
  • Equipped with 1 x RS-232, 2 x RS-485 & 2 x RJ45 ports (GbE)
  • Support Modbus RTU/TCP, MQTT, JSON, TCP/UDP, OPC UA* and customized industrial protocols
  • Support VPN, SNMP, BGP, HTTP, Telnet, SSH, CLI, & SPI
  • DIN Rail or Wall Mount
  • Wide operating voltage: 5-35VDC
  • Operating temperature: -35°C~+75°C


The Bivocom TR323 is a mini industrial 5G NR IoT router designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission. It provides OpenWRT based Linux OS embedded environment that allows IoT developers and engineers to program and install their own applications based on Python, C/C++ to the hardware.

The TR323 router has 2-Gigabit ethernet ports, 1-RS232(debug), 2-RS485, to connect to ethernet and serial controllers, sensors, transferring the data to the cloud server via 5G cellular network. It comes with industrial protocols, such as MQTT, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA and VPN to provide you an efficient and secure IoT data connectivity between field devices and cloud server.

The Bivocom TR323 router supports dual sim for failover, providing robust and reliable wireless and wired connectivity for your mission-critical industrial applications, and GNSS to track your remote assets, such as EV charging station, solar power, smart pole, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines and ATM.
