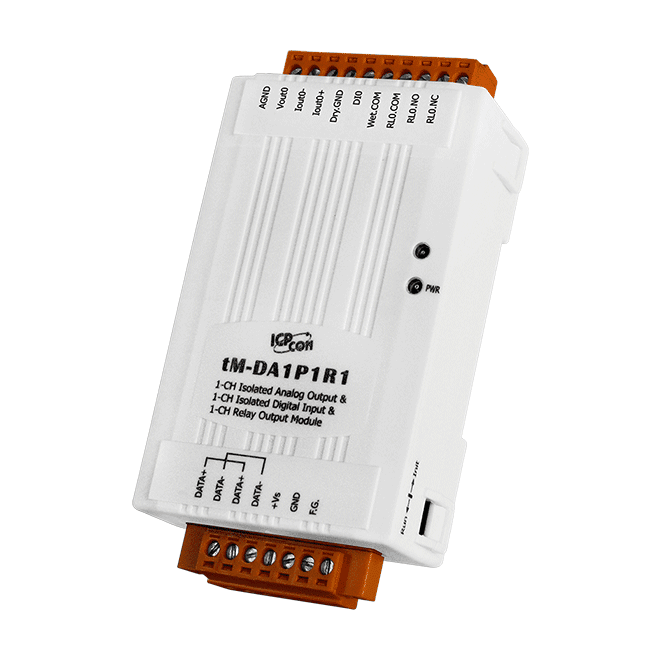

tM-DA1P1R1 1-ch AO, 1-ch DI and 1-ch Power Relay Module

£89.69

Key Features

• Isolated Analog Output
• Isolated Digital Input
• Power Relay Output
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• 4 kV ESD Protection
• 3 kV Intra-module Isolation

Description

The ICP DAS tM-DA1P1R1 is an RS-485 Interface module that offers 1 analog output channel, 1 digital input channel and 1 relay output channel. Analog output resolution is 12-bit with an output range of 0~10V and 0~20mA. The Digital input channel is dry contact type and provides a 16-bit counter function. The Relay output type is a Form C, and all I/O terminals provide 4 kV ESD protection and 3 kV intra-module isolation.
