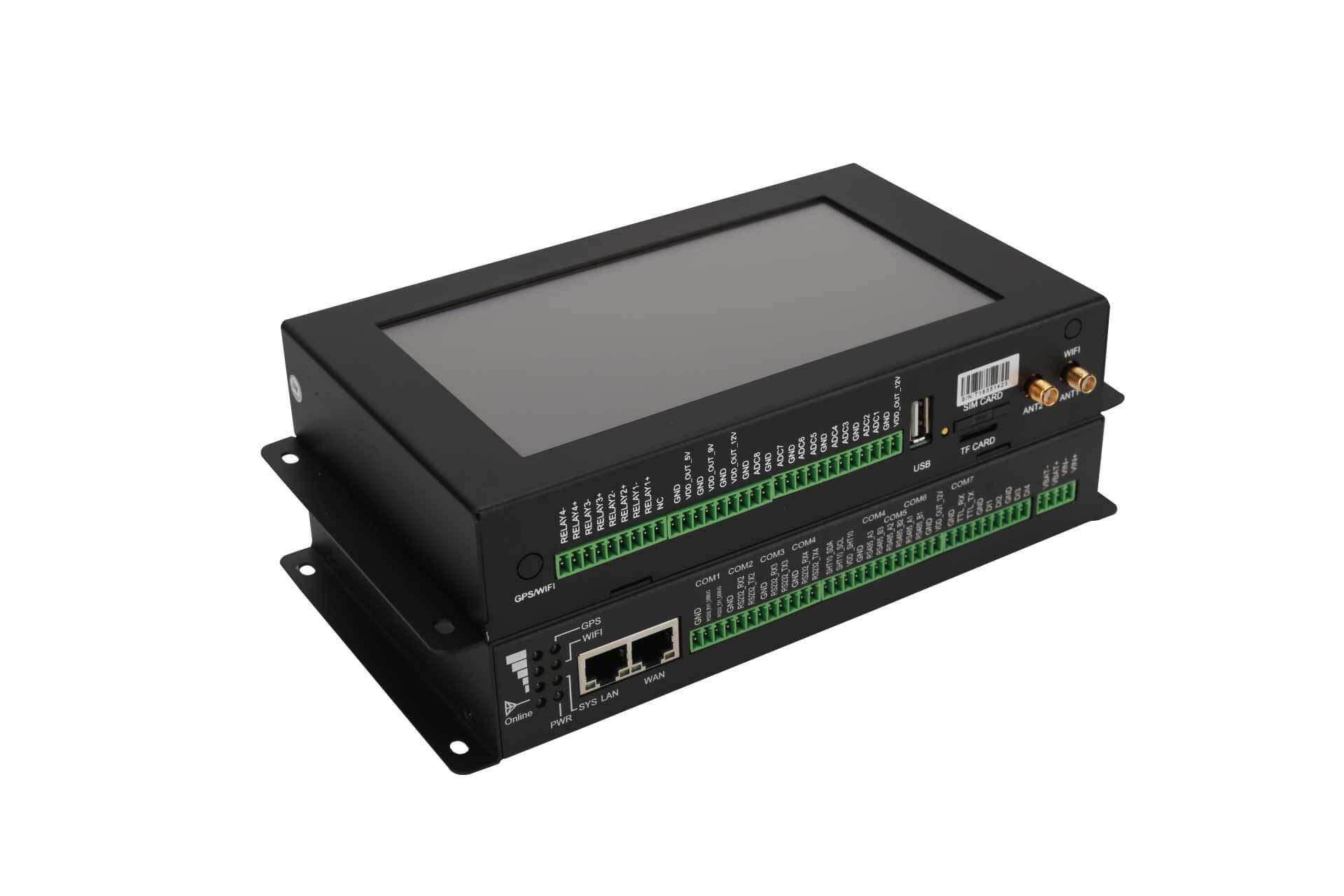

TG462S-LQE-W Industrial 4G Edge Gateway with 7″ Touch Screen & 2.4G WIFI, 4-RS-232, 3-RS-485, 1-I2C, 1-TTL, 8-AI, 4-DI, 4-Relay & 5-Power Output

£508.50

Features

  • 7″ Touch Screen with high-performance ARM-based CPU
  • Equipped with 4-RS-232, 3-RS-485, 4-DI, 8-ADC, 4-Relay, 5-Power Output, 1-I2C, 1-TTL & USB port
  • OpenWrt based Linux OS
  • Support 4G Network
  • Supports up to 1GB flash
  • 1-Micro SD card supports up to 32GB data & program storage
  • Support MQTT, Modbus RTU/TCP protocols
  • Wide operating voltage: 5-35VDC
  • Operating temperature: -35°C~+75°C

Description

The Bivocom TG462S Industrial cellular Edge Gateways are designed for connecting diverse types of field sensors and equipment to the cloud via LTE/3G cellular network, which makes it suitable for industrial IoT and M2M applications that require secure and rugged LTE connectivity in remote application with harsh environment such as water & waste water, oil & gas, industry 4.0, smart city and vending machines.

The TG462S industrial 4G IoT Edge gateway is equipped with 256MB RAM, 1G Flash, 2.4G WIFI, 1-WAN, 1-LAN, 1-USB, 4-RS232, 3-RS485, 1-I2C, 1-TTL, 8-AI(4-20mA), 4-DI(0-30V), 4-Relay and 5-Power Output and 1-TF card slot for data storage. With high-performance 32-bit ARM-based CPU and Modbus RTU/TCP, MQTT, TCP/IP protocols support, makes the Bivocom TG462S the ideal solution for a vast range of industrial applications. This gateway is designed based on Openwrt which allow developers to use their own application based on Python or LUA with the TG462S.

The Bivocom TG462S is also embedded with a 7 inch HD TFT touch screen that provides a better user experience for field data display and maintenance.

DS_TG462-TG462S_V2.2-1
