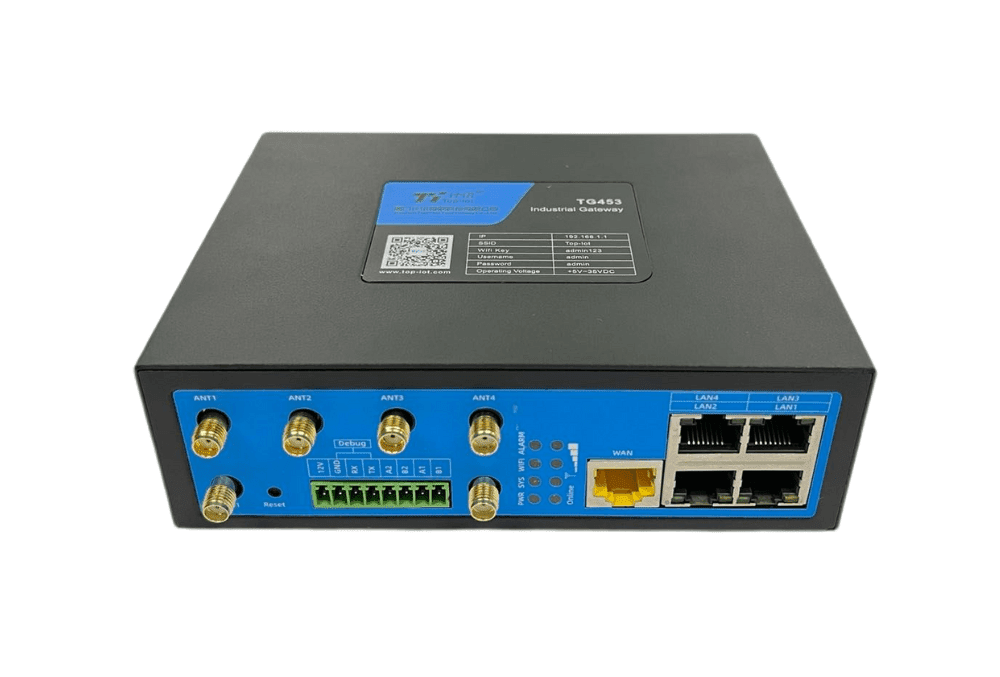

TG453-NRQ5G-W Industrial 5G NR IoT Gateway with 5-GbE, 1-RS232 ( for debugging), 2-RS485, 1-Power Output and 2.4G WIFI

£625.50

Add to quote

Features

  • Global 5G NR Sub-6 bands or mmWave(Option), SA and NSA dual modes, or 4G LTE1
  • 5-RJ45(GbE),1-RS232(Debug), 2-RS485, 1-Power Output, 1-TF, 2.4G WIFI, GNSS(Option)
  • Dual SIM/Dual Module(Option) for failover/load balance
  • Up to 32GB local data storage and backup via Micro SD
  • OpenWRT based Linux OS, Python, C/C++ programmable*
  • Wide operating temperature: -35~+75 °C
  • Modbus RTU/TCP, MQTT, JSON, TCP/UDP and customized industrial protocols VPN, SNMP, BGP, HTTP, Telnet, SSH, CLI, SPI firewall
  • Wide operating voltage: 5-35VDC
  • Operating temperature: -35°C~+75°C

Description

The BivocomTG453 is a compact 5G NR IoT gateway designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission, and capacity of basic edge computing. It provides OpenWRT based Linux OS embedded environment that allows developers and engineers to program and install their own application based on Python, C/C++ to the hardware themselves.

The TG453 gateway has 5-Gigabit ethernet ports, 1-RS232, 2-RS485 to connect to diverse field equipment and sensors, transferring the data to the cloud server via 5G/4G LTE cellular network. It comes with industrial protocols such as MQTT, Modbus RTU/TCP, JSON, TCP/UDP and VPN to provide you an efficient and secure IoT data connectivity between field devices and cloud server.

The Bivocom TG453 gateway has option of dual sim/dual module for failover/load balance, providing robust and reliable wireless and wired connectivity for your mission-critical industrial applications, such as EV charging station, solar power, smart pole, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines and ATM.

.

DS_TG453_V2.2.1
