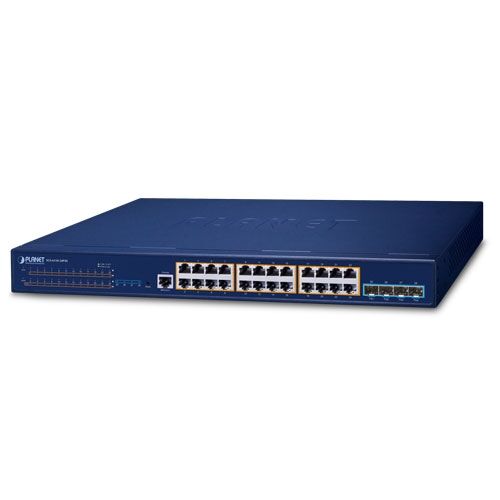

SGS-6310-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Stackable Managed Switch


Key Features

  • 24* 10/100/1000BASE-T RJ45 copper ports
  • 4* 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup
  • Virtualized multiple SGS-6310 series stacked into one logical facility
  • Connects with stack members via assigned 10G SFP+ interfaces
  • Single IP address stack management, supporting up to 8 hardware units stacked together
  • IPv4 routing protocol supports RIPv1/v2 and OSPFv2
  • IPv6 routing protocol supports RIPng and OSPFv3
  • Routing interface provides per VLAN routing mode
  • VRRPv1/v3 protocol for redundant routing deployment
  • Supports IPv4 IGMP v1/v2/v3, IGMP Snooping.
  • Supports IGMP Fast Leave, MVR, IGMP filter
  • Supports IPv6 MLD V1, MLD snooping
  • 16K MAC address table, automatic source address learning and aging
  • Supports VLAN


Resilient 10Gbps and Layer 3 Routing Solution for Enterprise Networking

PLANET SGS-6310 series is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6310-24T4X features 24 10/100/1000BASE-T RJ45 ports and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in an 1U rugged case with fanless design.

The SGS-6310 series provides high-density performance, Layer 3 IPv4/IPv6 static routingRIP and OSPF dynamic routing capability, ERPS ring, abundant L2/L4 switching engine and virtual switch stacking technology to fulfill the need of heavy transmission of all applications. It gives the enterprises, service providers and campuses flexible control over port density, uplinks and switch stack performance at an affordable price beyond value.

Dual AC Redundant Power to Ensure Continuous Operation

The SGS-6310-24T4X is equipped with two 100~240V AC power supply units for redundant power supply installation. A redundant power system is also provided to enhance the reliability with AC power supply units. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.



High Performance 10Gbps Ethernet Capacity

The four SFP+ ports built in the SGS-6310 series boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 80Gbps, which greatly meets high bandwidth demands in the LAN. Each of the SFP+ ports supports Dual-Speed10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Centralized Hardware Stacking Management

Two of the 10G SFP+ ports can be configured to connect several SGS-6310 series for building a virtually logical facility. The stackable SGS-6310 series, suitable for the enterprises, service providers and telecoms, provides high port density, large uplink bandwidth and high stacking performance, thus giving great flexibility for different application requirements. The SGS-6310 series can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network operations.
